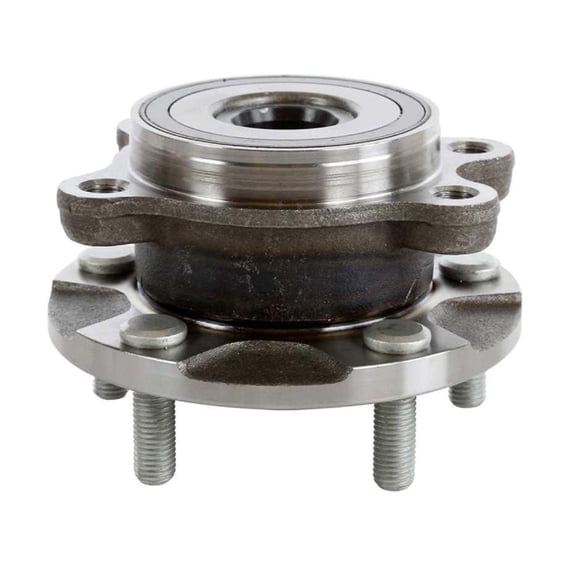

FEMPRXZ Wheel Hub and Bearing Assembly Right Passenger Left Driver Rear Front Side Polished Protected with ABS Sensor 5 Lugs for Scion for iM for tC for xB,for Toyota for Corolla iM for RAV4

What is Wheel Hub & Bearing
Wheel Hub/Bearing is a key component that connects the wheels and the vehicle. Its purpose is to support the wheels, reduce friction and wear between the wheels and the vehicle, and ensure the stability and smoothness of the vehicle during operation

Fitment
for Scion
for tC 2.5L 2011-2016
for xB 2.4L 2008-2015

for Toyota
for Corolla iM 1.8L 2017-2018
for RAV4 2.4L 2006-2008 & 2.5L 2009-2012

Part Number
HB613259

ABS Sensor
Yes

Bolt Circle Diameter
4.5 in / 114.3mm

Bolt Thread Pitch
M12*1.5

Bolts Included
5

C-Clip Included
No

Depth
6.1 in

Flange Bolt Hole Quantity
4

Flange Diameter
5.47 in / 139mm

Flange Offset
1.87 in / 47.5mm

Flange Shape
Rectangular

Height
4.5 in

Inside Spline Quantity
26

Knuckle Bolt Circle Diameter
4.49 in / 114mm

Knuckle Bolt Hole Size
M12*1.25

Qty.
1

Weight
7.9lbs

Feature
Front Wheel Hub Bearing Assembly Fits Front Driver Left Side or Front Passenger Right Side
Generation Design Used in Manufacturing Our Hub Assemblies
Sensors Designed to Match Specific Make and Model
Manufactured for Quick and Easy Installation
Hub Bearings Should Always Be Replaced in Pairs (Front or Rear). This Reduces the Overall Time Required to Replace 2 Hub Bearings at Different Times. in Cases,If a Hub Bearing Fails the Other Is Close Behind
Hub Bearings Must Be Torqued to Vehicle Specifications to Stop Failure

How to install Wheel Hub & Bearing
Take off the wheels and brake components.
Take off the wheel bearings and clean the bearing seats and bearings.
Insert the new hub and bearing assembly into the bearing seat and make sure they are properly aligned.
Reassemble the wheels and brake components.
