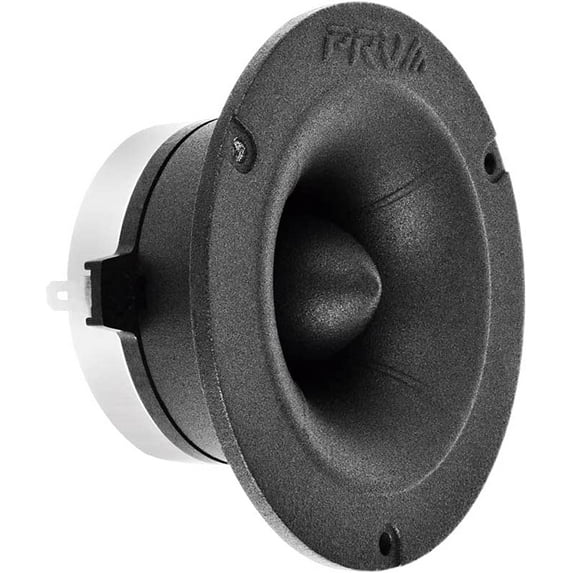

G3C16301LPRV AUDIO TW500My-Nd Mylar Neodymium 4" Bullet Super Tweeter 8 Ohm 1.25" VC Pro Audio High Frequency Driver 108dB 150 Watts (Single)
Key item features
- This Neodymium Bullet Tweeter features a Mylar diaphragm for low distortion and extended high frequency response
- Includes Polyester metalized film capacitor to lower distortion by limiting low frequencies
- Rated Power Handling: 75 Watts
- Program Power: 150 Watts
- Sensitivity (1W/1m): 108 dB
Specs
- Size4"
- Car speaker size class4"
- Car speaker typeSuper-Tweeters, Tweeters
- Rms power rating75 W
- Peak audio power handling150 W
- Loudspeaker sensitivity108 dB
How do you want your item?
About this item
Product details
WARNING: California’s Proposition 65
Product description
At PRV Audio, we are committed to designing, manufacturing, and introducing new and innovative pro audio products to the market, delivering exceptional quality with superior sound fidelity.
With passion and purpose, we seek to deliver the perfect product for your lifestyle and to inspire your love for music and life, every day. Your Emotions, Our Technology.
Values
– Innovation and Excellence
– Integrity and Inclusion
– Cooperation and Respect
– Passion and Perseverance
This Neodymium Bullet Tweeter features a Mylar diaphragm for low distortion and extended high-frequency response. The Mylar diaphragm is light, thin, and durable for long play applications.
TW500My-Nd is designed with a cast aluminum frame to ensure quality sound and long-lasting play in almost any environment. Replacement Diaphragms are available.
PRV AUDIO TW500My-Nd Mylar Neodymium 4" Bullet Super Tweeter (Single)
Nominal impedance 8 Ohms Rated AES Power Handling (RMS) 75 Watts
Program Power 150 Watts
Sensitivity 2.00V at 1m 108 dB
Recommended Hi Pass Crossover* 4000 Hz** - *For Full Power Handling **12db Per Octave Crossover
Frequency Response at -10dB 3,500 –19,000 Hz
Voice Coil Diameter 1.25”(32 mm)
Voice Coil Wire Aluminum
Voice Coil Former Material Kapton
Diaphragm Material Mylar
Flux Density 1.30 T
Magnet Material Neodymium
Mounting Depth 1.61” (41 mm)
Overall Depth 1.77” (45 mm)
Cutout Diameter 3.19” (81 mm)
Overall Diameter 4.0” (100 mm)
Find out below which tweeter fits best your needs!
TW400Ti-Nd-4
TW450Ti-Nd-4
TW350Ti
TW500My-Nd
TW700Ti
TW700Ti-CR
Buying Options
Buying Options
Buying Options
Add to Cart
Add to Cart
Add to Cart
Customer Reviews 4.3 out of 5 stars 14
4.3 out of 5 stars 105
4.5 out of 5 stars 244
4.3 out of 5 stars 36
4.7 out of 5 stars 457
4.6 out of 5 stars 193
Price — no data — no data — no data $49.91$49.91 $41.50$41.50 $41.50$41.50
Nominal impedance 4 Ohms 4 Ohms 4 Ohms 8 Ohms 8 Ohms 8 Ohms
Rated AES Power Handling (RMS) 60 Watts 60 Watts 60 Watts 75 Watts 120 Watts Watts 120 Watts
Program Power 120 Watts 120 Watts 120 Watts 150 Watts 240 Watts 240 Watts
Sensitivity (1W/1M) 106 dB 107 dB 105 dB 108 dB 107 dB 107 dB
Frequency Response at -10dB 4,500 – 20,000 Hz 4,500 – 20,000 Hz 3500 – 20000 Hz 3,500 – 19,000 Hz 3500 – 20000 Hz 3500 – 20000 Hz
Magnet Type Neodymium Neodymium Ferrite Neodymium Ferrite Ferrite
Rec. Crossover Point at 12dB oct. 6000 Hz 6000 Hz 5000 Hz 4000 Hz 5000 Hz 5000 Hz
Mounting Type Flush Mount Front Mount, Flush Mount Front Mount Front Mount Front Mount Front Mount
Mounting Depth 1.51” (38.5 mm) 1.57” (40 mm) 2.08” (53 mm) 1.61” (41 mm) 2.55” (64.9 mm) 2.55” (64.9 mm)
- This Neodymium Bullet Tweeter features a Mylar diaphragm for low distortion and extended high frequency response
- Includes Polyester metalized film capacitor to lower distortion by limiting low frequencies
- Rated Power Handling: 75 Watts
- Program Power: 150 Watts
- Sensitivity (1W/1m): 108 dB
Specifications
Size
Car speaker size class
Car speaker type
Rms power rating
Warnings
