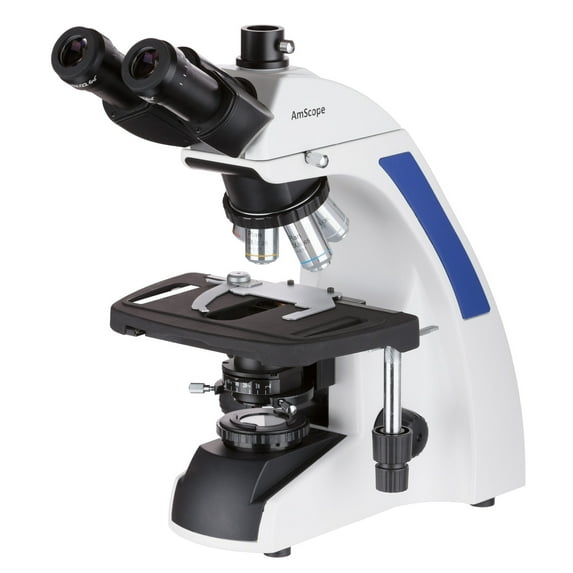

AmScope 40X-2500X Plan Infinity Kohler Laboratory Trinocular Compound Microscope New

This professional trinocular compound microscope comes equipped with an infinity Plan optical system and offers advanced features as well as research-grade performance. Its crystal-clear optics and precise mechanical systems promise high-quality performances for advanced applications. The backward nosepiece-design allows spacious room for convenient operation. This microscope has four high-quality Plan Achromatic objectives (4X, 10X, 40X, 100X), two pairs of extreme widefield eyepieces (10X, 25X), a Koehler illumination system, a 30-degree incline on the ocular tubes for comfortable viewing, 360-degree swiveling, compensation-free trinocular head, a coaxial coarse & fine focusing system, and a 3D mechanical stage. It provides six levels of magnification: 40X, 100X, 250X, 400X, 1000X, 2500X. It is an ideal instrument for advanced researches.

Features :

• Infinity Corrected Optical System with High Resolution
• Fully Coated Optics with Crystal Clear & Sharp Images
• Precise Mechanical Control System
• Reversed Nosepiece Design
• Kohler Illumination System with Field Diaphragm for Lighting Control
• 30-Degree Inclined, 360-Degree Swiveling, Compensation Free Trinocular Head
• Six Magnification Levels: 40X, 100X, 250X, 400X, 1000X, 2500X
• Intensity-Variable Transmitted LED Lighting System
• Abbe Condenser with Iris Diaphragm and Filter Holder
• Rack and Pinion Adjustment for Condenser
• Low Position Coaxial Stage Movement Controlling Knobs
• Dual Side Coaxial Coarse and Fine Focusing Control
• Adjustable Interpupillary Distance
• Adjustable Diopter on Eyepieces
• Durable Cast Alloy Frame with Stain Resistant Enamel Finish
• Four Infinity Plan Objectives Included
• One Pair of Extreme Widefield Eyepieces Included
• Quadruple, Reversed, Extra-Large Nosepiece with Wide, Knurled Grip for Easy Operation
• Large Double Layer Mechanical Stage with Stain Resistant Coating
• Upward Stage Limit Stop to Protect Objectives and Slides
• Manufactured under ISO 9001 Quality Control Standards
• Excellent Five (5) Year Factory Warranty

• Specifications :

• Optical System: infinity corrected
• Nosepiece: reversed, ball bearing quadruple
• Head: gemel type trinocular head, 30-degree inclined
• Eyepiece: high eye-point eyepieces, PL10X22mm, WF25X
• Objectives: infinity plan objective 4X, 10X, 40X (spring), 100X (spring, oil)
• Focusing: low-position coaxial focus system
• Focusing Range: 1-3/16" (30mm)
• Interpupillary Adjustment Range: 2-3/16" - 3" (55-75mm)
• Mechanical Tube Length: 6-5/16" (160mm)
• Mechanical Stage: 8.5" x 5.9" (216mm x 150mm)
• Stage Traveling Range: 2.9" x 2" (75x50mm)
• Focusing Rang: 0.95" (24mm)
• Division of Fine Focusing: 0.00003935" (0.001mm)
• Illuminator: Built-in Kohler LED illumination system
• Condenser: N.A. 1.25 achromatic condenser
• Illumination: Kohler, LED
• Power Supply: 90V-240 wide voltage, CE certified
• Built in measurement capabilities
• Weight: 28 lbs

• Packing List :

• One Trinocular Compensation-Free Head
• One Microscope Body with Frame, Base, and Kohler Illumination System
• Four High Quality DIN Plan Achromatic Objectives: 4X, 10X, 40X and 100X
• One Pair of Widefield Eyepieces: PL10X
• One Pair of Widefield Eyepieces: 25X
• One Dust Cover
• Immersion Oil
• User's Manual
