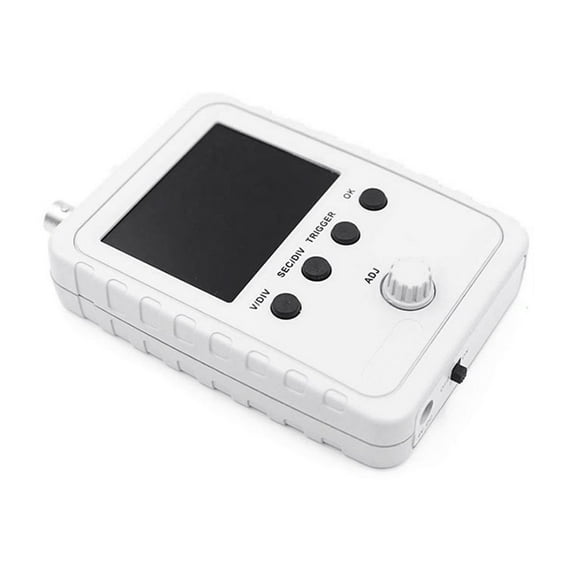

Portable Oscilloscope DSO150 Oscilloscope Digital Multimeter 200kHz Bandwidth 1 Channel 2.4" Display 1MSa/s Support 80KHz ,Professional Designed

Features:

Vertical displacement is adjustable and with instructions

Waveforms before observable triggers

Freeze waveform display at any time

Test signal source with 1KHz /3.3V square wave

Save/tune out the waveform, the waveform does not disappear after shutdown.

Description:

*1. Display: 2.4-inch color TFT LCD(320 x 240 resolution)

*2. Maximum Real Time Sampling Rate: 1Msps

*3. Precision: 12Bit

*4. Sampling Buffer Depth: 1024 bytes

*5. Number of Channel: 1

*6. Analog Band Width: 0~200KHz

*7. Vertical Sensitivity: 5mV/Div~20V/Div (progressive by 1-2-5)

*8. Trigger Position: 1/2 of buffer size fixed

*9. Sensitivity Error: < 5%

*10. Input Impedance: 1M

*11. Power Supply: 9V DC

*12. Supply Current: 120mA

*14. Coupling Methods: DC/AC/GND

*15. Horizontal Time Base Range: 10 s/Div~50s/Div (progressive by 1-2-5)
