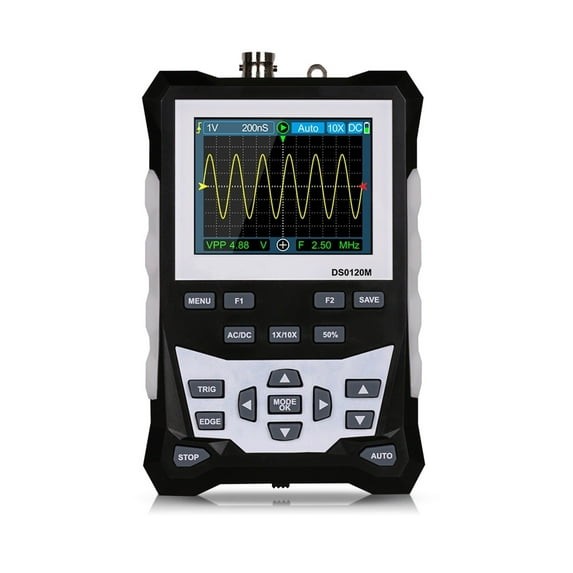

DS0120M 320x240 2.4 Inch TFT Color Screen Digital Oscilloscope 120MHz Bandwidth 500MSa/s Sampling Rate Professional Tool ,Professional Designed

Features:

Silicone protective cover on both sides of the fusela, anti-slip, anti-fall and shockproof, comfortable to feel.

Small size and light, so you can take it to anywhere you want to use it.

Specifications:

Material: ABS

Screen: 320 * 240 LCD screen

Impedance:

*1: 1M

*10: 10M

Stora: 2500 DSO waveforms

Use condition: 0C~ +40, < 75%RH

Storo condition: -10C~ +60, < 90%RH

Vertical resolution: 8 bits

Vertical accuracy: ±(5%+ 0.2div)

accuracy:10%

Frequency accuracy:1%

Trigr level: ±3.8div (0. 1div per step)

Trigr position: ± 6div (0. 1div per step)

Time base ran: 6ns/div ~ 50s/div

Scan mode: auto, single, normal

Battery: 1 * 18650 lithium battery (included)

Record length: 12div

Packa size: 190 * 140 * 45mm / 7.5 * 5.5 * 1.8in

Packa weight: 390g / 13.8ounce

Packing list:

1 * Oscilloscope

1 * Probe

1 * User Manual

1 * USB Cable
