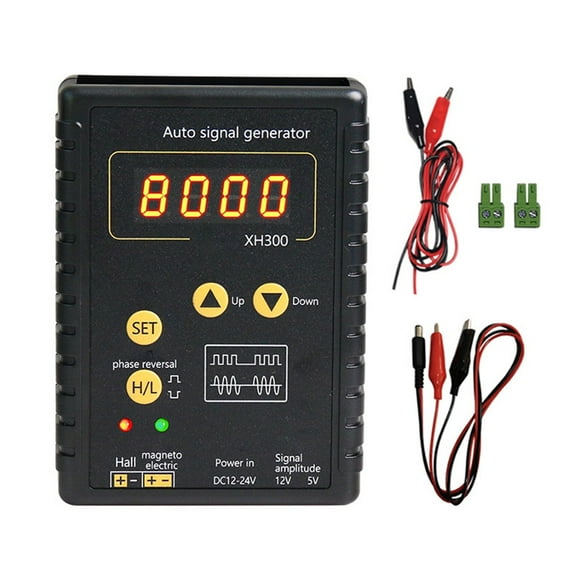

Xh300 Automotive Signal Generator Automotive Hall Sensor Crankshaft Position For Test Measurement Tool Accessory In Stock

Features:

Built-in 6 crankshaft signals: 58+2, 34+2, 36+2, 60+0, 56+4, 10+1;

Built-in 2 camshaft signals: 4+1 and 6+1. The crankshaft signal can be edited by yourself.

- Standard 60+0 signal analog output type.

- Hall signal and magnetoelectric signal are output simultaneously.

- Magnetoelectric signal or Hall signal output. The maximum output amplitude/voltage is equal to the input power and can be adjusted by adding a potentiometer.

- Use 60+0 signal to simulate the vehicle speed sensor signal output.

- Camshaft sensor 4+1, 6+1 signal simulation.

- Use 60+0 signal to monitor odometer or test odometer. It can be used to monitor the car engine computer board or speedometer.

- Users can edit the crankshaft signal, and the edited crankshaft sensor signal can be automatically saved.

- One-key single-phase reversal.

- Frequency range: 1Hz to 8Hz

- Signal amplitude: 5V and 12V adjustable

- Power input: 12-24VDC.

Specifications:

Part name: Signal generator sensor

Material: ABS

Color: Black

Size: As shown in the figure

01. Hall sensor signal simulation.
