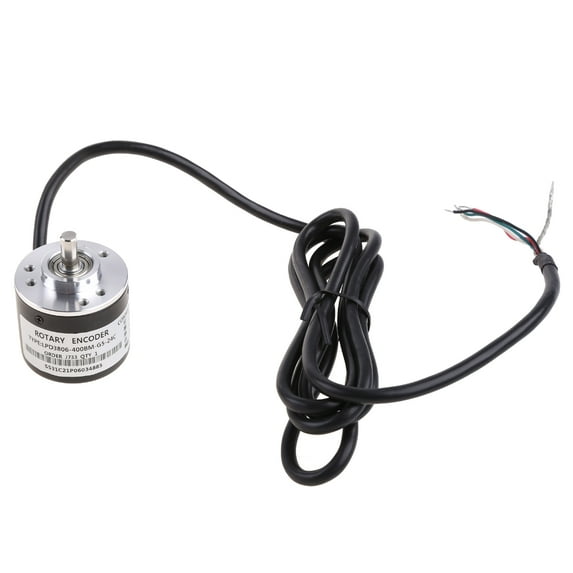

400P/R Incremental Rotary 400p/r AB phase 6mm Shaf NEW

brand new and high quality
Features :
400 p/r (Single-phase 400 pulses /R,Two phase 4 frequency doubling to 1600 pulses)
Power source: DC5-24V
Shaft: 6x13mm/0.23x0.51"
Size: 38x35.5mm/1.49x1.39"
Output :AB 2phase output rectangular orthogonal pulse circuit, the output for the NPN open collector output type
mechanical speed: 5000 R / min
Response frequency: 0-20KHz
Cable length: 1.5 meter
Notice:AB 2phase output must not be directly
connected with VCC, otherwise, will burn the output triode
Because different batches, and may not have the terminal connection:
Green = A phase, white = B phase, red = Vcc power supply, black = V0
Application:
Is used to measure the rotational speed, Angle and acceleration of the object and the length measurement
Suitable for intelligent control of various displacement measurement, automatic fixed-length leather automatic guillotine machines, steel cut length control, civil measured height human scale, Students
racing robots
Quantity:1pc

Package includes:
1 x 400P/R Incremental Rotary
