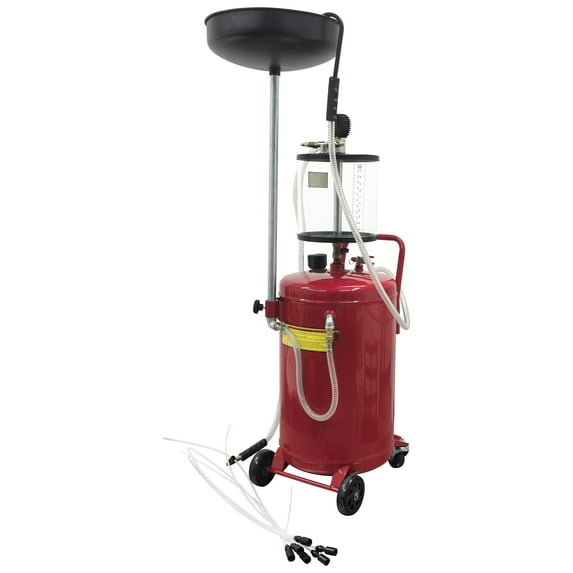

Waste Oil Extractor Drain Tank Pneumatic Suction Extraction Drainage Machine

Product Overview:
The pneumatic waste oil extractor is an efficient and convenient professional vehicle maintenance device which uses the compressed air as the power source and is designed for sucking and draining waste oil of various vehicles. The functions of extraction and drainage of the waste oil are combined into a whole, and the waste oil change process is greatly simplified. The pneumatic waste oil extractor has the advantages of high efficiency, time saving, high safety, environmental protection, low maintenance ratio, high practicability and flexible movement. It is an optimal choice for vehicle repair and maintenance.

Product Parameters:
Vacuum degree： 0-0.8 Bar
Working pressure： 6-10 Bar
Capacity of measuring cup： 10L
Diameter of measuring cup： 25cm/9.84in
Capacity of tank body： 70L
Diameter of tank body： 38cm/14.96in

Attention
1. This container is only used for waste oil. It is strictly prohibited to extract gasoline/diesel/brake oil/gear oil, etc. It is strictly prohibited to extract methanol/ketone/corrosive liquids/flammable liquids, otherwise the measuring cup will explode.
2. After emptying the waste oil in the measuring cup, please be sure to close the oil inlet valve below the measuring cup, otherwise the compressed air will enter the measuring cup, and when you open the oil outlet valve, the measuring cup will explode.
3. When pumping a vacuum, please use (the oil, impurities and moisture have been filtered) Clean air, and the pressure is not less than 8kg/cm2.
4. During oil extraction, the temperature should not exceed 60℃, and it is recommended to be within the range of 40℃-60℃;
5. When discharging oil from the tank, be sure to close the valve between the tank and the measuring cup. The compressed air inside must not enter the measuring cup, otherwise the measuring cup will crack and hurt the human body.
6. The oil discharge pressure of the tank can be 0.7kg/cm2 when the oil is discharged. The maximum pressure is never allowed to be 1kg/cm2 when draining oil. Please empty the remaining waste oil in the tank when the oil is exhausted. Air can be carried out again.
7. Prohibit pumping the brake fluid and transmission fluid.
8. Always wear ANSI approved safety goggles during setup and use.

Note: the air inflation must be gradually conducted during oil extraction, which can (1) reduce the air loss, (2) reduce the pressure more quickly, (3) extract the oil faster.

Item included(170716):
Techtongda Pneumatic Waste Oil Extractor Drain Tank
