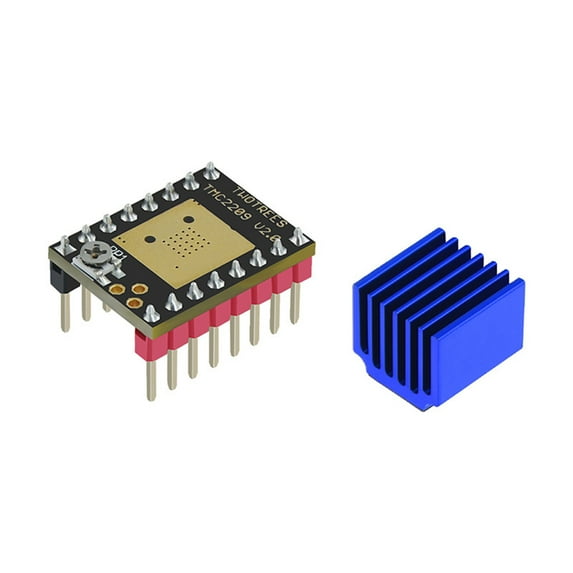

TMC2209 V2.0 Stepper Motor Driver with Heatsink for Printer 256 Microsteps 2.5A max- for SKR1.3 1.4 MKS Robin-Nano

Features: TMC2209 quiet motor driver IC- (original imported chip) for two-phase stepping motor.
The TMC2209 compatible with-many traditional and TMC2208 pins-.
Excellent mute- effect, large heat sink, good heat dissipation
Support for sensorless feedback function
Support UART mode- by attaching jumper-caps instead of soldering on mks- gen-L V2.0 skr1.3/1.4 mks- sgen-L.

Specifications: Item: TMC2209 v2.0 Stepping Motor Driver
Hardware compatible with-StepStick- and Pololu- A4988
Max-Current: 2.5A
Step/Dir interface with microstep interpolation (up to 256 microsteps)
Input voltage: 5.5V-28V
Package Size: approx 9x13mm/3.54x5.12in

Package Includes: 1PC x TMC2209V2.0 Stepping Motor Driver
1PC x Heatsink

note: Due to the problems of lighting effects and angles, there will be certain tolerances in the product, please understand.
Please allow 0-1cm error due to the manual measurment
