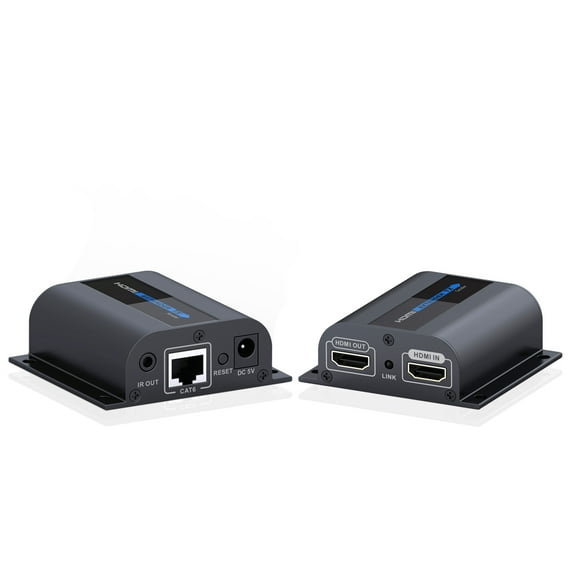

HDMI Extender Over Cat6 Cat7 Ethernet Cable Adapter with Splitter Dual Output Loop Port Signal Amplifier Booster Repeater IR Remote Control Receiver & Blaster Supports HD Video Audio 1080P HDCP LPCM

The HDMI Extender with Local Loop Back Port + IR Remote Control Receiver & Blaster is the ideal solution for connecting equipment in remote locations up to 150 feet apart with a single Cat6 Ethernet cable. Applications include digital signage, houses of worship, classrooms, boardrooms, conference room projectors, gaming, or video production.
This model comes with an additional local loop out port which allows the extender to function as 2 port HDMI splitter that split HDMI signal: one via the loop out HDMI port for connecting to a local display and another via the network cable to the remote HDMI receiver RX unit.

HDMI signal: Compatible HDCP
Transmission length: CAT6:60m at 1080P
Resolutions: Up to 1080p
Supports 24 bit deep color
Supports uncompressed 2 channel audio such as LPCM
IR remote control: Support 20~60KHz wide frequency IR remote control
Power: DC5V/1A
Resolution supported: 480i@60Hz, 480p@60Hz, 576i@50Hz, 576p@50Hz, 720p@50/60Hz, 1080i@50/60Hz, 1080p@50/60Hz

1x HDMI to RJ45 Sender TX
1x RJ45 to HDMI Receiver RX
2x 5V/1A DC Power Adapters
1x IR Blaster Extension Cable
1x IR Receiver Extension Cable
1x User Manual
