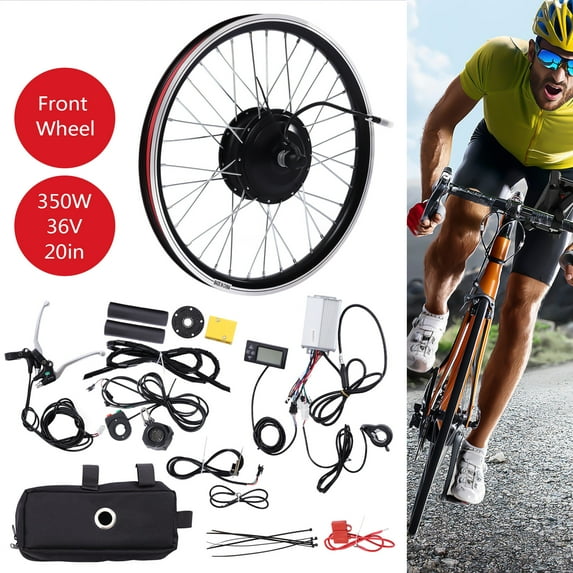

ChicHomey 350W 36V Electric Bike Conversion Kit,Front Wheel Hub Motor,LCD Displa, for 20-Inch Bikes

Description

This electric bike conversion kit is made of high-quality aluminum, iron, copper, and magnet steel, which is strong, durable, wear-resistant, and not easy to deform. This product can convert ordinary bicycles into electric bicycles, so that you can feel the speed of the wind and climb hills without difficulty, giving you a good riding experience. You deserve it!

 Details

Pedal Assistant Sensor: It senses the rhythm of the pedal and adjusts the speed of the motor accordingly. This helps on long trips and avoids wrist pain caused by constant pressure.

Controller Bag: This can be convenient to store the controller. It is also very good-looking and stylish.

Application

It is suitable for retrofitting the front wheel of a two-wheeled snow bike. It is suitable for bikes with 20-inch tires.

Specification

Color: Black, Silver

Material: Aluminum, Iron, Copper, Magnet Steel

Voltage: 36V

Power: 350W

Meter Type: LCD

Power Type: Lead-acid or Lithium Battery (Not Included)

Installation Position: Front

Motor Type: Brushless Gear Series Hub Motor

Motor Net Weight: 3-3.5kg/6.6-7.7lbs

Motor Diameter: 143mm/5.63inch

Motor Shaft Diameter: M14

Motor Shaft Length: 153mm/6.02inch

Motor Cable Length: 100cm/39.37inch

Number of Sensors: 3

Rated Speed: 300rpm

Rated Torque: 30nm

Flat Fork Width Requirement: Min. 100-110mm/3.94-4.33inch

Brake: Disc Brake Rotor Type Can be Installed 6 Screws

Braking Method: Disc Type

Corresponding Controller: 36V 350w Controller

Available Wheel Size: 20inch

Instrument Function: Fault Display, Speed Display, Mileage Display, Five-speed Booster Speed Control, and Battery Power Display

Efficiency: ≥82%

Motor Wheel No-load Speed: Max 28km/h

Motor Wheel Load Speed: Max 24km/h

Net Weight: 5kg/11lbs

Gross Weight: 7kg/15lbs

Package Size: 50*50*23cm/19*19*9inch

Wheel Diameter: 42cm/16.54inch

Wheel Width: 17cm/6.69inch

Package Included

1* Front Motor Wheel

1* Controller

2* Turners

1* Brake Handle

1* Controller Bag

1 Set* Pedal Assistant Sensors

1* Headlight and Horn Switch

1* LCD Meter

1* English Manual

Other Accessories for Assembly

Notes

1. This set does not include tires and needs to be purchased by the customer. The suitable tire size is 20*1.75-2.125inch.

2. The speed is related to wheel size, road condition, battery condition, guest load, wind Speed, and other factors.

3. It is suitable for the front wheel of a two-wheeled bike. It cannot be used for three-wheelers or multi-wheelers.

4. Please prepare a lead-acid battery or lithium battery of corresponding voltage in advance.

5. Please make sure a solid connection between the motor and the controller.

6. Please make sure that the inner core of each plug is not damaged, broken, or bent.

7. If your kit has been in use for a while and then suddenly stops working. It could be that your motor plug is soaked in water. Please unplug it and let it dry. Then put it back in place and it will work fine.

8. You need to connect the machine correctly and firmly during installation so that the product can work properly. If there is a mistake during the installation process, the product will not work properly. After the installation is completed, you can check whether the error code is displayed on the LCD screen.

9. Please read the manual completely before installation and use, and pay particular attention to the safety instructions included.

10. Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement, and make sure you do not mind before ordering.
