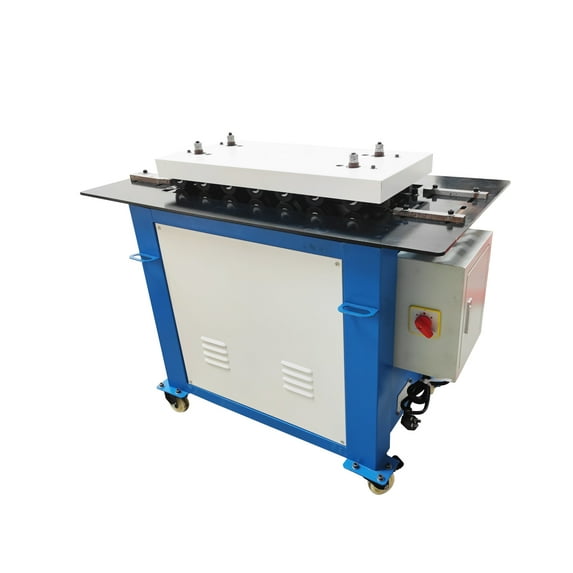

Seam Lock Roll Forming Machine 0.5-1.2mm Iron/Galvanized Electric Sheet Metal Seamer Seam Lock Forming Machine 220V

Product Overview
The lock seamer, also known as a seam rolling machine, seaming machine, or edge folding machine, is a sheet metal processing equipment primarily used for forming connections between metal plates and sealing seams in ventilation ducts. It utilizes rollers to compress and form interlocking seams on the plates, making it suitable for fabricating square and rectangular thin-walled ducts in air conditioning and purification equipment systems.
This machine can process iron sheets and galvanized plates with thicknesses ranging from 0.5 to 1.2mm into single flat seams. It features compact size, lightweight construction, and easy mobility for convenient operation.

Product Parameters
Material: Steel
Sheet Thickness: 0.019-0.047"/0.5-1.2mm (iron/galvanized steel)
Power: 1.5KW
Voltage: 220V
Seam Type: Single flat seam

Operating Instructions:
1. Please adjust the feed guide distance according to your processing requirements before use.
2. Connect to power supply (220V). ‌
3. Insert the sheet metal horizontally‌ into the feeding inlet for processing.

Precautions:
※ Never touch rotating rollers‌ during operation, and ‌keep fingers clear of the workpiece‌ when feeding materials.
※ Immediately stop the machine‌ if any foreign object enters the rollers, and perform troubleshooting.

Item Included (033152):
Seam Lock Roll Forming Machine *1
