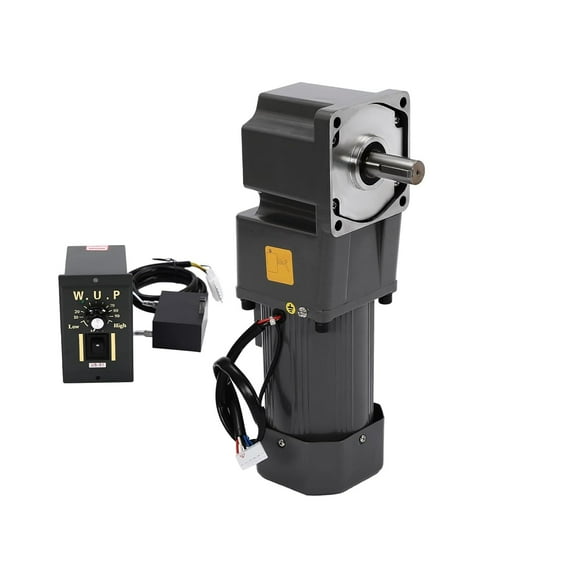

AC High Torque Motor,110V 200W Electric Gear Motor with Variable Speed Adjustable Controller Governor Geared Motor,90°Right Angle Output,1:30K 45R/MIN 36NM
Key item features
- ★【PREMIUM MATERIAL】 This product is made of high-quality medium carbon tempered steel, with high hardness, strong we-ar-re-sistance, an-ti-co-rrosion, an-ti-ru-st performance, and long service life.
- ★【ADJUSTABLE SPEED】 The speed regulator with high precision and wide speed range allows you to adjust different speeds according to different applications to achieve the expected results.
- ★【LARGE TORQUE】 The stable pure purple copper coil and gear set consisting of full ball bearings and medium carbon tempered steel gears can effectively increase the torque of the motor, providing you with smoother and more powerful operation.
- ★【HIGH EFFICIENCY & EFFICIENT HEAT-DISSIPATION】 The speed of a 200W motor can reach 45rpm, ensuring high efficiency and saving you a lot of working time. Built-in cooling fan, bottom cooling window design, and stable performance of pure purple copper coil can effectively dissipate heat, thus ensuring long-term stable operation.
- ★【COMMUTATION FUNCTION】This product has flexible normally open and normally closed control system by changing wires or adding switches, providing you with higher freedom of use.
Specs
- Motor drive typeAC
- Input voltage110 V
- Watts200 W
- BrandDwellnix
- Has nrtl listing certificationN
- Height13.54 in
- Free shipping
Free 30-day returns
How do you want your item?
More seller options (1)
Similar items you might like
Based on what customers bought
Reduced price Miumaeov AC 110V 60W Electric Gear Motor Variable Adjustable Speed Reduction Controller High Torque Single-Phase Motor 135 RPM 1:10 $87.20 Was $100.28
Reduced price
$8720current price $87.20, Was $100.28$100.28Miumaeov AC 110V 60W Electric Gear Motor Variable Adjustable Speed Reduction Controller High Torque Single-Phase Motor 135 RPM 1:10
110V Ac Gear Motor Electric Single-Phase Motor Gear Motor 27RPM Electric Variable Speed Adjustable Controller Governor Adjustable Speed Controller 15W $62.30
$6230current price $62.30110V Ac Gear Motor Electric Single-Phase Motor Gear Motor 27RPM Electric Variable Speed Adjustable Controller Governor Adjustable Speed Controller 15W
14 out of 5 Stars. 1 reviews250W 110V AC Gear Motor Electric Variable Speed Reduction Controller 1:5 270RPM $111.20
$11120current price $111.20250W 110V AC Gear Motor Electric Variable Speed Reduction Controller 1:5 270RPM
VEVOR VFD 7.5KW, 34A, 10HP Variable Frequency Drive for 3-Phase Motor Speed Control $198.90
$19890current price $198.90VEVOR VFD 7.5KW, 34A, 10HP Variable Frequency Drive for 3-Phase Motor Speed Control
90W Electric Motor Single-Phase AC Gear Motor Variable Speed Controller 270RPM $80.00
$8000current price $80.0090W Electric Motor Single-Phase AC Gear Motor Variable Speed Controller 270RPM
AC High Torque Motor,250W Electric Single-Phase Motor Reversible Motor with Variable Speed Adjustable Controller Governor Geared Motor 110V $124.80
$12480current price $124.80AC High Torque Motor,250W Electric Single-Phase Motor Reversible Motor with Variable Speed Adjustable Controller Governor Geared Motor 110V
120W AC 110V Gear Motor Electric Single-Phase Variable Speed Adjustable Controller 90-1650RPM, Reduction Ratio 1:40 (40K) $97.99
8 optionsAvailable in additional 8 options$9799current price $97.99120W AC 110V Gear Motor Electric Single-Phase Variable Speed Adjustable Controller 90-1650RPM, Reduction Ratio 1:40 (40K)
Miumaeov 110V 120W High Torque Electric AC Worm Gear Reducer Motor with Speed Controller 23-33r/min $136.80
$13680current price $136.80Miumaeov 110V 120W High Torque Electric AC Worm Gear Reducer Motor with Speed Controller 23-33r/min
200W 110V AC Gear Motor Electric Variable with Speed Controller Single-Phase 20K $111.02
$11102current price $111.02200W 110V AC Gear Motor Electric Variable with Speed Controller Single-Phase 20K
110V 250W AC Gear Reduction Motor Electric Variable Speed Control Reversible $117.82
$11782current price $117.82110V 250W AC Gear Reduction Motor Electric Variable Speed Control Reversible
15 out of 5 Stars. 1 reviewsMiumaeov AC110V 370W 1:50 Electric Worm Gear Motor with Speed Controller Industrial Gearbox RV50 $158.40
$15840current price $158.40Miumaeov AC110V 370W 1:50 Electric Worm Gear Motor with Speed Controller Industrial Gearbox RV50
Miumaeov 110V 90W AC High Torque Motor Adjustable Variable Electric Gear Reduction Motor Single-Phase Motor with Speed Controller 1:100K 13.5RPM $89.60
$8960current price $89.60Miumaeov 110V 90W AC High Torque Motor Adjustable Variable Electric Gear Reduction Motor Single-Phase Motor with Speed Controller 1:100K 13.5RPM
AC 110V 1:30 Gear Motor Electric Motor Variable Speed Controller 0-45 RPM 120W $88.10
$8810current price $88.10AC 110V 1:30 Gear Motor Electric Motor Variable Speed Controller 0-45 RPM 120W
110V AC Gear Motor Electric Variable Speed Reduction Controller 25W 135RPM $59.93
2 optionsAvailable in additional 2 options$5993current price $59.93110V AC Gear Motor Electric Variable Speed Reduction Controller 25W 135RPM
AC High Torque Motor 110V 250W Electric Reversible Motor Single-Phase Motor 250w $118.40
$11840current price $118.40AC High Torque Motor 110V 250W Electric Reversible Motor Single-Phase Motor 250w
110V 250W AC Gear Reduction Motor Electric Variable Speed Control Reversible $124.80
$12480current price $124.80110V 250W AC Gear Reduction Motor Electric Variable Speed Control Reversible
Miumaeov AC 110V 6W 7.5RPM Electric Gear Motor Variable Speed Reduction Controller High Torque Single-phase Motor 1:180 $61.82
$6182current price $61.82Miumaeov AC 110V 6W 7.5RPM Electric Gear Motor Variable Speed Reduction Controller High Torque Single-phase Motor 1:180
110V 120W AC gear motor electric variable speed Reduction controller 1:10 135RPM $109.00
$10900current price $109.00110V 120W AC gear motor electric variable speed Reduction controller 1:10 135RPM
HOT! 110V to 220V 1.5KW Frequency Converter VFD Motor Variable Speed Power Controller Single Phase Input Three Output $102.19
$10219current price $102.19HOT! 110V to 220V 1.5KW Frequency Converter VFD Motor Variable Speed Power Controller Single Phase Input Three Output
Miumaeov AC 110V Electric Gear Motor Variable Speed With Speed Controller 0~135 RPM 1:10 $95.12
$9512current price $95.12Miumaeov AC 110V Electric Gear Motor Variable Speed With Speed Controller 0~135 RPM 1:10
About this item
Product details
Description:
The 200W speed reduction motor provides high efficiency for your work and allows you to save a lot of working time.The governor with high accuracy and wide speed range allows you to adjust the right speed for different applications.And with its high torque,it will be your powerful working partner!
Stator: Both ends of the stator are equipped with ball-bearing axle wheels,resulting in low friction,temperature,and noise.
Fine Fittings: The fine fittings make the top cover and bottom cover tightly combined,thus making the rotor run stably.
Gearbox: 5GU gears are vacuum plasma nitrided for high strength and its shaft keyway is equipped with fixed key pins for we-ar-re-sistance and stability.The gearbox has built-in solid lub-ricant for smoother rotation.
Speed Range:
1.The lower the governor's speed, the slower the speed, the smaller the force.The normal reasonable speed range is 50%~100%.
2.The larger the speed ratio,the slower the speed,the greater the force;the smaller the speed ratio,the faster the speed,the smaller the force.(Example: Both are 20 revolutions,but the 20 revolutions directly from the reducer are 2-3 times smaller than selecting a 40 revolution and then adjusting to 20 revolutions.)
Application:
This product can be used in packaging,printing,textile,printing and dyeing,chemical,food,pharmaceutical,and other engineering machinery,as well as advertising,office,petrochemical,instrumentation,stage lighting,transmission,automated warehouse,parking lot,and other equipment.
Specification:
Material: Medium Carbon Tempered Steel
Color: Dark Grey
Process: Plastic Spraying, One-piece Forming, Heat Treatment
Type: Medium Solid Motor
Reduction Ratio: 1:30 (30K)
Power Supply: Wiring
Voltage: 110V
Power: 200W
Torque: 36NM
Rotational Speed: 45R/MIN
Output: 90° Right Angle Output
Gross Weight: 10kg/ 22.05 lbs
Net Weight:9kg/19.84lbs
Total Height: 34.4cm/13.54 in
Reduction Box Size: 10.4*10.4cm/4.09*4.09in
Governor Size: 10*6*9cm/3.9*2.4*3.5in
Package Size: 35*16.5*14.5cm/ 13.78*6.5*5.71 in
Package Included:
1 * Speed Reduction Motor
1 * Speed Governor
1 * English Manual
All Accessories for Installation
Notes:
1.Our motors do not include the power cord and the bracket.
2.Please do not plug and unplug the power cord with the power on. Please do not knock on the machine.
3.The speed reduction motor is composed of a motor and a speed reduction gear. Different speed ratios can achieve different speed regulation ranges, and they have different strengths.
4.The speed of the output shaft is different under different reduction ratios. When the gearbox decelerates, the higher the reduction ratio, the higher the force. The slower the speed regulated by the governor, the lower the torque.
5.The motor can run for a long time within the safe speed regulation range.The safe speed regulation range for small loads is 50% of full speed-full speed. The safe speed regulation range for large loads is 70% of full speed-full speed.
6.Please read the operating manual completely before use. And pay particular attention to the safety instructions included.
- ★【PREMIUM MATERIAL】 This product is made of high-quality medium carbon tempered steel, with high hardness, strong we-ar-re-sistance, an-ti-co-rrosion, an-ti-ru-st performance, and long service life.
- ★【ADJUSTABLE SPEED】 The speed regulator with high precision and wide speed range allows you to adjust different speeds according to different applications to achieve the expected results.
- ★【LARGE TORQUE】 The stable pure purple copper coil and gear set consisting of full ball bearings and medium carbon tempered steel gears can effectively increase the torque of the motor, providing you with smoother and more powerful operation.
- ★【HIGH EFFICIENCY & EFFICIENT HEAT-DISSIPATION】 The speed of a 200W motor can reach 45rpm, ensuring high efficiency and saving you a lot of working time. Built-in cooling fan, bottom cooling window design, and stable performance of pure purple copper coil can effectively dissipate heat, thus ensuring long-term stable operation.
- ★【COMMUTATION FUNCTION】This product has flexible normally open and normally closed control system by changing wires or adding switches, providing you with higher freedom of use.
