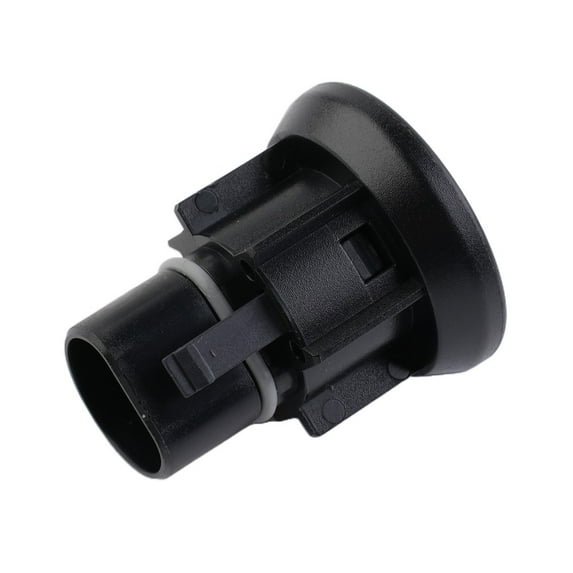

Ppo Material Solar Panel Waterproof Connectors End Cap For Betteri Bc01 Female Waterproof Connectors End Cap For Betteri

Features:

For single-phase for mi cro inverter For Betteri BC01 connection from e.g. for hoymiles, For or For Huayu

Specification:

Number of contacts：2+ PE

Rated current：25A(when use 4mm² wire)

Rated voltage： for TUV: 250V AC for: 250/350V AC

Contact resistance：≤1mΩ

Rated impulse withstand voltage： 4000V AC

Over-voltage category： III

Waterproof Rating： IP68(.5m, 24h)

Insertion and withdraw force： 10～50N

Flammability Rating：UL94-V0

Rated temperature：-40℃～+85℃

Applicable wire gauge：2.5/4.0mm² or 14/12AWG

Package Contents:

/3/5PC End Cap

Note:

. The real color of the item may be slightly different from the pictures shown on website caused by many factors such as brightness of your monitor and light brightness.

2. Please allow slight manual measurement deviation for the data.
