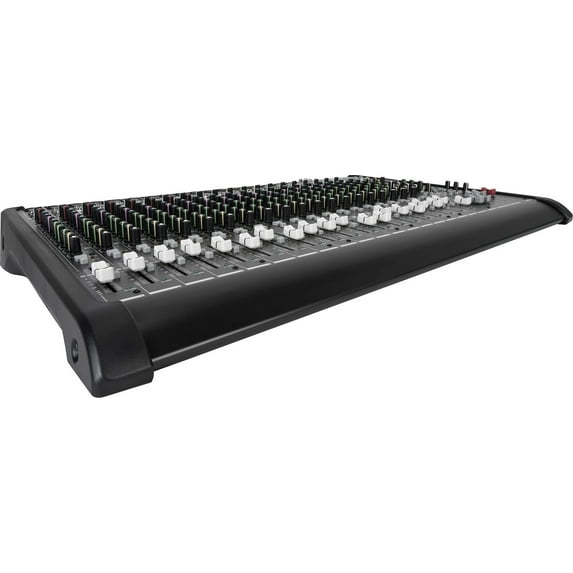

Rcf LIVEPAD24CXUSB 24 Ch Mixing Board With Usb Efx

It features 18 transparent sound, ultra-low noise microphone inputs with balanced XLR connector, or alternatively 16 mono line input with insert send/return, a three-band EQ with a sweepable mid frequency on 16 channels, 4 channels of stereo inputs with 4-band fixed EQs, and 4-groups assignable sub mixes, 60mm long-live extra smooth faders and four AUX sends per channel (2 Pre/Post switchable pots). The L-PAD 24CX USB gives you all the features you need to mix any professional live performance.
* Specifications Accessories
* APPLICATIONS; Live, Reinforcement, Corporate events, Bands
* PART NUMBER: 17140072 (US)
* 18 MIC/LINE inputs, 4 STEREO inputs
* 8 single-control dynamic compressors (Ch. 1-Ch.8)
* 4 STEREO AUX returns
* 3-band EQ with sweepable MID Frequency on microphone channels
* 4-band fixed EQ on stereo line channels
* 4 AUX sends per channel: 2 PRE/POST faders switchable
* 4-GROUP MIX
* 24-bit DSP effects for 99 presets
* USB port for PC audio recording and playback
* ELECTRONIC SPECS.
* Frequency Response:20Hz to 20kHz
* Total Harmonic Distortion (THD+N):0,03%%
* INPUTS
* Mic:18
* Gain range:0dB to -50dB
* Low Cut:75Hz
* Phantom Power +48V:Yes
* Mono Line:16
* Gain range:20dB to -30dB
* Stereo Line:4
* 2 Track:Yes
* Stereo Return:4
* OUTPUTS
* Main MIX:1
* Control Room:1
* AUX Send:4
* FX Send:1
* Group Out:4
* Phones:2
* 2 Track:Yes
* COMPRESSORS
* Single Control:8
* EQ
* BANDS on MONO channels:3
* Sweepable mid frequency 100Hz-8kHz
* BANDS on STEREO channels:4
* +/-15dB @ 12kHz - Shelving, +/-15dB @ 3kHz, +/-15dB @ 500Hz, +/-15dB @ 80Hz - Shelving
* AUXILIARY SENDS
* AUX:2 PRE/POST
* AUX:1 + 1 FX POST
* FX:1 POST
* INTERNAL EFFECTS
* Height:99
* USB AUDIO
* Play trk:2
* Rec trk:2
* OTHER FEATURES
* Optional Card Slot:Yes
* Footswitch:Yes
* ELECTRICAL SPECS.
* Power supply:Internal
* Power requirements:100-240V
* Power consumption:70W
* CABINET
* Cabinet Material:Metal
* Colour:Black
* PHISICAL SPECIFICATION
* Height:85/3.34 mm/inch
* Width:735/28.93 mm/inch
* Depth:460/18.11 mm/inch
* Net Weight:9.67/21.31 Kg/Lbs
