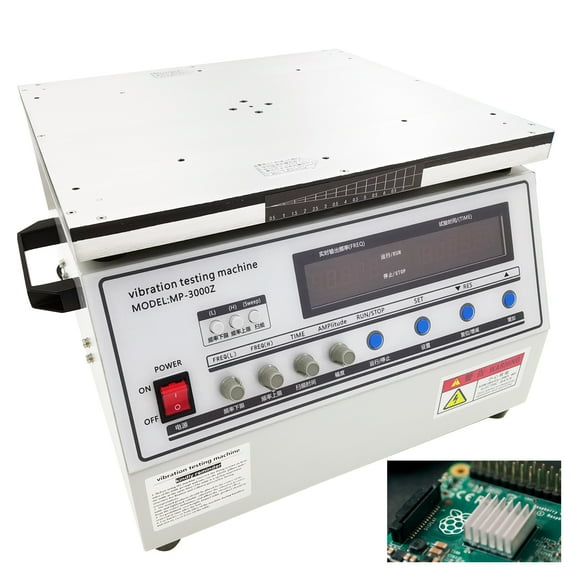

0-500HZ High-Frequency Vertical Vibration Exciter Integrated Machine 110V
(No ratings yet)
Key item features
- Automatic setting, simple operation, the use of advanced microcomputer control circuit, you can permanently memory set parameters, power will not lose data; At the same time, the number of vibration program segments and the number of program cycles can be set.
- Built-in overload protection fuse, and equipped with high-performance chip, read data more accurately. The microcomputer protection circuit is adopted to overcome the defect that the ordinary machine is burned by the impulse voltage when starting up, and the use is more convenient and reliable.
- There are handles on both sides of the machine for easy lifting and handling, and it can be easily moved to the place where it is needed, saving time and effort.
- The heat dissipation hole can timely dissipate the heat generated inside, ensuring that the machine can operate normally for a long time.
- The hooks can be firmly hung on the vibration test machine, while the strap has enough elasticity and strength to tightly tie the object under test to ensure that no loosening or displacement occurs during the vibration test.
Specs
- BrandLGXEnzhuo
- Height10.8 in
- Weight65.1 lb
Current price is USD$2,289.00
Price when purchased online
Out of stock
How do you want your item?
Out of stock
About this item
Product details
Introduction:
MP-3000Z intelligent vibration testing machine is used to simulate the various environments encountered in the manufacturing, assembly, transportation and use of the execution stage, to identify whether the product is able to withstand environmental vibration, suitable for the research, development, quality control and manufacturing of electronics, mechanical and electrical, optoelectronics, motor vehicles, toys and other industries. The test method of the machine is based on the digital control of random vibration, and the vibration of various environments is simulated and provided to determine the ability of the test sample to withstand the specified broadband random vibration. When the machine completes the vibration test stop or the machine is shut down and powered off, the machine will automatically remember the current vibration data and automatically reset.
Parameters:
Voltage: AC110V
Power: 300W
Frequency Range: 0~500HZ
Load Weight: 22.0LBS(10KG)
Vibration Direction: Vertical
Table Size Diameter: 15.4"*13.8"(39*35MM)
Maximum Amplitude: P to P ±7MM
Service Environment: 0~40℃; RH＜80%
Maximum Acceleration: 1000M/S² P-P
Package Size: 20.1"*18.9"*13.4"(51CM*48CM*34CM)
Net Weight/Gross Weight: 52.9LBS(24KG)/65.0LBS(29.5KG)
Items Included: 057045-EnzS
MP-3000Z Professional Vertical Vibration Test Bench(0-500Hz Adjustable Frequency) 110V
Vibration Test Bench*1
Rubber Rope*1
Fixed Screw Hook*4
MP-3000Z intelligent vibration testing machine is used to simulate the various environments encountered in the manufacturing, assembly, transportation and use of the execution stage, to identify whether the product is able to withstand environmental vibration, suitable for the research, development, quality control and manufacturing of electronics, mechanical and electrical, optoelectronics, motor vehicles, toys and other industries. The test method of the machine is based on the digital control of random vibration, and the vibration of various environments is simulated and provided to determine the ability of the test sample to withstand the specified broadband random vibration. When the machine completes the vibration test stop or the machine is shut down and powered off, the machine will automatically remember the current vibration data and automatically reset.
Parameters:
Voltage: AC110V
Power: 300W
Frequency Range: 0~500HZ
Load Weight: 22.0LBS(10KG)
Vibration Direction: Vertical
Table Size Diameter: 15.4"*13.8"(39*35MM)
Maximum Amplitude: P to P ±7MM
Service Environment: 0~40℃; RH＜80%
Maximum Acceleration: 1000M/S² P-P
Package Size: 20.1"*18.9"*13.4"(51CM*48CM*34CM)
Net Weight/Gross Weight: 52.9LBS(24KG)/65.0LBS(29.5KG)
Items Included: 057045-EnzS
MP-3000Z Professional Vertical Vibration Test Bench(0-500Hz Adjustable Frequency) 110V
Vibration Test Bench*1
Rubber Rope*1
Fixed Screw Hook*4
- Automatic setting, simple operation, the use of advanced microcomputer control circuit, you can permanently memory set parameters, power will not lose data; At the same time, the number of vibration program segments and the number of program cycles can be set.
- Built-in overload protection fuse, and equipped with high-performance chip, read data more accurately. The microcomputer protection circuit is adopted to overcome the defect that the ordinary machine is burned by the impulse voltage when starting up, and the use is more convenient and reliable.
- There are handles on both sides of the machine for easy lifting and handling, and it can be easily moved to the place where it is needed, saving time and effort.
- The heat dissipation hole can timely dissipate the heat generated inside, ensuring that the machine can operate normally for a long time.
- The hooks can be firmly hung on the vibration test machine, while the strap has enough elasticity and strength to tightly tie the object under test to ensure that no loosening or displacement occurs during the vibration test.
info:
We aim to show you accurate product information. Manufacturers, suppliers and others provide what you see here, and we have not verified it.
Specifications
Brand
LGXEnzhuo
Height
10.8 in
Weight
65.1 lb
Warranty
Warranty information
30 days return; 6 months' warranty for the machines, not for the consumables and lifetime technical support.
Please be aware that the warranty terms on items offered for sale by third party Marketplace sellers may differ from those displayed in this section (if any). To confirm warranty terms on an item offered for sale by a third party Marketplace seller, please use the 'Contact seller' feature on the third party Marketplace seller's information page and request the item's warranty terms prior to purchase.
Please be aware that the warranty terms on items offered for sale by third party Marketplace sellers may differ from those displayed in this section (if any). To confirm warranty terms on an item offered for sale by a third party Marketplace seller, please use the 'Contact seller' feature on the third party Marketplace seller's information page and request the item's warranty terms prior to purchase.
