TUF-2000M Water Flow Meter TS-2(DN15~DN100) TM-1 TL-1-HT(-30~160) High-Tem Ultrasonic E Sensor Digital Liquid Flowmeter ,Accurate Measurements

Note: One meter can only connect one sensor at one time.

TUF-2000M Flow Meter TS-2(DN15~DN100mm) TM-1(DN50~DN700mm) TS-2-HT(-30~160) High-tem Ultrasonic e Sensor Digital Flowmeter

Main Features:

Current input: 4-20mA, three channels, can be used for data collector;

Tri-wire resistance signal input (PT100): two channels, can be used for calorimeter.

5.Wide Application

Its features, particularly low cost, small size, high performance, local display, make it the choice for industrial automation, processing control, flow meter networking, composing multi-channel, high accuracy flow meter.

General Specification:Optional temperature transducers PT100:

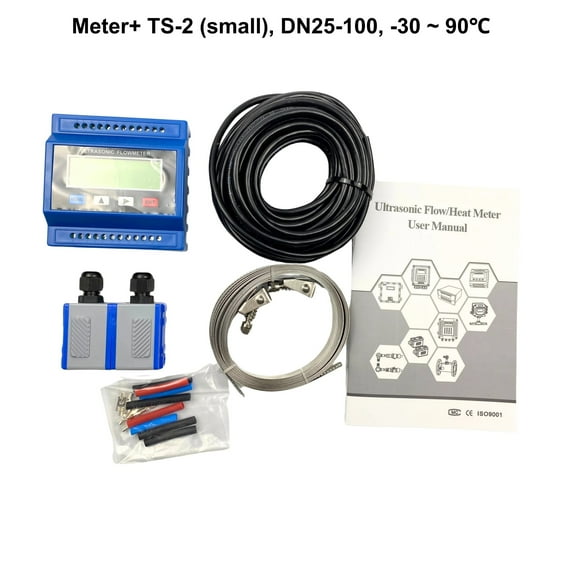

Standard Packing List:

TUF-2000M host 1 piece

Transducer 1 pair (Please select the appropriate one according to your pipe diameter and medium temperature)

Clamp Fixture 1 set

5m Transducer Cable 1 pair

English User Manual 1 piece

Wiring Diagram:

Notes:

You need to apply the coupling agent on the contact surface of the transducer and the pipeline, as shown in the figure:

Because the coupling agent is a colloid. We cannot send it to you through logistics.

Hope you can understand! Thanks!
