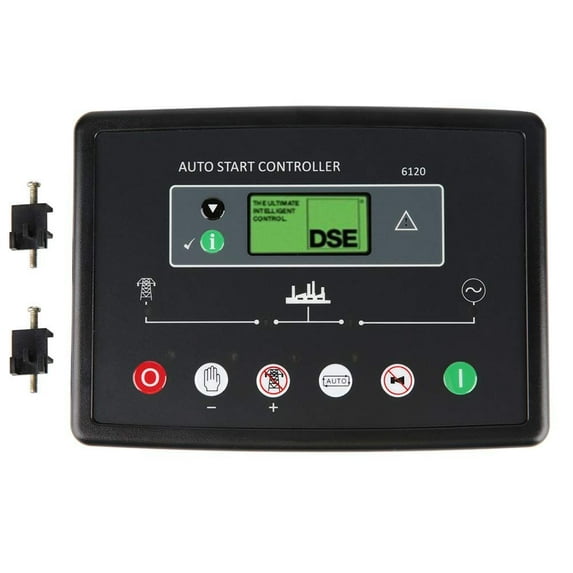

RANMEI For Deep Sea Electronic Generator Controller Module Control Panel Lcd Dse6120
Key item features
- [COMPREHENSIVE MONITORING CAPABILITIES] The DSE6120 generator controller module offers advanced monitoring of essential engine parameters including speed, frequency, voltage, current, oil pressure, water temperature, and oil level. This s you stay informed about your generator's performance at all times.
- [CONFIGURABLE INPUTS AND OUTPUTS] With 9 configurable analog/digital inputs and 6 outputs, this module provides flexibility for various engine types and sensors. Customize your setup to meet specific operational needs with ease.
- [HEATED DISPLAY OPTION] The heated display s optimal visibility even in extremely cold weather conditions. You can rely on the DSE6120 to function effectively in harsh environments, providing peace of mind during critical operations.
- [USER-FRIENDLY CONFIGURATION] The DSE Configuration Suite PC software allows for straightforward setup and advanced system control. Access historical alarms and operating status effortlessly through a configurable event log with up to 100 entries.
- [SIZING REMINDER] Please check your own sizing guide to compatibility before purchasing.
Specs
BrandRANMEI
Dimensions5.90 x 5.90 x 1.18 in
Weight1.23 lb
How do you want your item?
About this item
Product details
Features:
* Supports 0-10 V and 4-20mA oil pressure.
* Provides flexibility for multiple sensors and engine types.
* Heated display option.
* Ensures display continues to operate in extremely cold weather conditions.
* Three-phase generator sensing.
* Provides true generator sensing.
* Three-phase power (utility) monitoring.
* Provides true generator and power (utility) sensing.
* Generator/load current monitoring and protection.
* Provides the convenience of generator monitoring and protection or load current monitoring.
* Configurable analog/digital inputs (9).
* Provides multiple mounting options.
* Configurable DC, voltage and step load outputs (6).
* Provides complete generator load control.
* CAN, MPU and alternator speed sensing (selectable based on engine type).
* Ensures module can be used with multiple engine types.
* Tier 4 CAN engine support.
* Ensures control module can be used with the latest modern electronic engine technology.
* Configurable event log (100 entries).
* Provides access to historical alarms and operating status.
* DSE Configuration Suite PC software.
* Provides complete user-friendly configuration and easy-to-use advanced system control and monitoring.
* Fuel and start output (configurable on CAN).
* Provides multiple installation options.
* DSE6120 module is used for single generator sets. The LCD display can display Chinese.
* The module can be used for electric and non-electric adjustment units to provide more advanced engine monitoring and protection functions.
* The module has a backlit LCD display that can clearly display the operating status of the engine at any time.
* The module can monitor speed, frequency, voltage, current, oil pressure, water temperature and oil level.
* The module can display engine alarms and has automatic shutdown protection.
* The module includes 6 digital inputs, 3 analog inputs and 6 digital outputs.
* The MPU version is configured with 2 outputs and the CAN version is configured with 6 outputs.
* Users can set the data of the module using the front panel buttons or other setting software.
Specifications:
Part Name: Generator Controller
Model: DSE6120
Material: Plastic, Metal
Color: Black
Size: Standard
Weight: 526g/18.6oz
DC Power Supply: Continuous voltage rating is 8 V to 35 V continuous
Startup voltage sag: Capable of sustaining 50 for ms at 0 V provided the power supply was at least 10 V before the voltage sag and then the power returns to 5 V. This is achieved without an internal battery. LEDs and backlighting will not remain on during startup.
Maximum operating current: 100 mA at 12 V, 105 mA at 24 V
Maximum standby current: 60 mA at 12 V, 55 mA at 24 V
Maximum sleep current: 40 mA at 12 V, 35 mA at 24 V
Generator and mains (utility);
Voltage range: 15 V to 415 V AC (Ph to for N); 26 V to 719 V AC (Ph to Phase)
Frequency range: 3.5 Hz to 75 Hz
Inputs: Digital inputs A to F, Negative switching analog input A
Configurable as;
Negative switching digital input
0 V to 10 V
4 mA to 20 mA
0 Ω to 240 Ω
Analog inputs B to D
Configurable as: Negative switching digital input 0 Ω to 480 Ω
Outputs:
Output A (fuel)
10 A short term, 5 A continuous,
at mains voltage
Output B (start)
10 A short term, 5 A continuous,
at mains voltage
Auxiliary outputs C, D, E and F
2 A DC at mains voltage
Package contents:
1 x generator controller
2 x fixing screws
Note:
- [COMPREHENSIVE MONITORING CAPABILITIES] The DSE6120 generator controller module offers advanced monitoring of essential engine parameters including speed, frequency, voltage, current, oil pressure, water temperature, and oil level. This s you stay informed about your generator's performance at all times.
- [CONFIGURABLE INPUTS AND OUTPUTS] With 9 configurable analog/digital inputs and 6 outputs, this module provides flexibility for various engine types and sensors. Customize your setup to meet specific operational needs with ease.
- [HEATED DISPLAY OPTION] The heated display s optimal visibility even in extremely cold weather conditions. You can rely on the DSE6120 to function effectively in harsh environments, providing peace of mind during critical operations.
- [USER-FRIENDLY CONFIGURATION] The DSE Configuration Suite PC software allows for straightforward setup and advanced system control. Access historical alarms and operating status effortlessly through a configurable event log with up to 100 entries.
- [SIZING REMINDER] Please check your own sizing guide to compatibility before purchasing.
