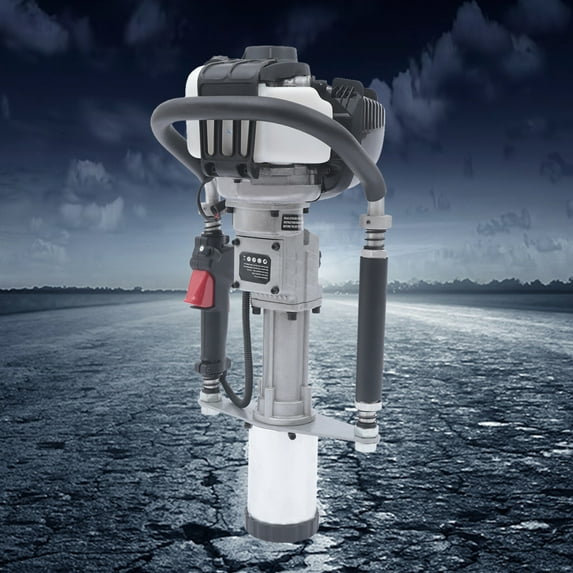

4 Stroke Gas Powered Fence Pile Driver T-Post Push Gasoline Engine Heavy Duty

Description

Are you still struggling with the complex pile driving work? Don't worry, our pile driver comes to the rescue! With a powerful 1.2KW engine, a 37.7cc four-stroke engine, and a speed of 8500rpm, it's like putting an accelerator on your work, and efficiency skyrockets! With it, you can bid farewell to those tiring traditional pile driving methods, and from now on, work can be relaxed and enjoyable. Come and give it a try, make your work not only efficient but also enjoyable!

Application

It is applicable to a series of piling projects such as gardening, road fencing, sea pontoon, agricultural fencing, grounding angle iron, orchard support, photovoltaic power station, geophysical exploration, construction, vegetable planting, fence protection, dam reinforcement, flood control and emergency blocking, pond maintenance, etc. It can be widely used in homes, construction sites, power stations, farms, and other places.

Specification

Color: Black

Style: Modern

Assembly Required: Yes

Mount Type: Floor Standing

Volume: ≤104dB

Material: Plastic, Aluminum, Iron

Engine Type: Air-Cooled Single-Cylinder 4-Stroke

Fuel: Pure Oil(#92/95)

Displacement: 37.7cc

Fuel Tank Capacity: 0.65L/27.47oz

Fuel Consumption Rate: ≤0.47L/19.87oz/kw.h

Impact Energy: 20-45J

Max. Power And Speed: 1.2kw/8500r/min

Impact Times: 1300-3000bpm

Max. Torque And Speed: 1.2Nm/5500/min

Power Source: Gasoline Powered

Starter System: Hand Pull Start

Pile Head Size: φ45mm/1.77in, Max φ55mm/2.16in

Product Size: 30*30*63cm/11.81*11.81*24.8inch

Net Weight: 12kg/26.46lbs

Packing Size: 79.5*42*33cm/31.3*16.54*12.99inch

Package Included

1*Pile Driver

1*Fuel Tank

1*Filter Oil Nozzle

1* Funnel

2*Piling Heads

1*Tool Bag

1* English Manual

1* Storage Case

All  Accessories for Installation

Notes

1. Please install and use it in strict accordance with the instructions, and pay attention to the safety precautions inside.

2. Please note that the product cannot be used for piling in water.

3. If the pile driver has the problem of not hammering, please check whether too much butter is added at the place where the butter is added, clean up the excess oil in the cylinder before disassembly, and add about 20 grams of high-temperature resistant butter again. And adjust the speed of carburetor. If the impact frequency is too high to hold, the impact frequency can be reduced. Otherwise, the impact frequency should be increased. Please note that this is fine tuning.

4. When the machine is not easy to start, pay attention to maintenance first. Add four-stroke oil into the tank and pure gasoline into the white tank. It is better to replace the fuel tank every day. The starting rope can be pulled out by one arm for two or three times, but this is also related to the temperature, sometimes it needs to be pulled several times. When the cold engine starts, close the damper (for good starting, open and start the warm engine), and open the damper after the machine is normal.

5. Please pay attention to whether the oil inlet pipe is full of oil before use.

6. When starting the product, please pull the starter quickly and continuously without stopping, and do not pull too hard.

7. Please note that this product cannot be used for piling in water.

8. Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement, and make sure you do not mind before ordering.
