Hero image 0 of Silver Hydraulic Cylinder Piston Rod Seal U-cup Installation Tool Kit Set S M L, 0 of 11

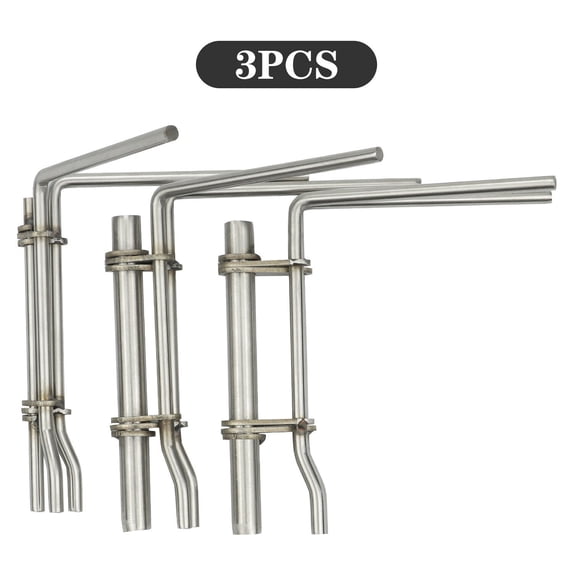

Silver Hydraulic Cylinder Piston Rod Seal U-cup Installation Tool Kit Set S M L

(No ratings yet)

Key item features

Versatile Sizing: This kit includes three distinct sizes (Small, Medium, Large) to accommodate a wide range of rod seal installation tasks, starting from 0.87 inches in diameter.
Small Rod Compatibility: The small tool is designed for rod diameters between 22-40mm (0.87" - 1.57") with a maximum gland hole cross-section of 6mm.
Medium Rod Compatibility: The medium tool is suitable for rod diameters ranging from 40-70mm (1.57" - 2.75") and a maximum gland hole cross-section of 8mm.
Large Rod Compatibility: The large tool handles rod diameters from 70-165mm (2.75" - 6.49") with a maximum gland hole cross-section of 10mm.
Damage Prevention: The installation process involves turning the seal into an omega shape, which helps to minimize damage by making it smaller than the gland hole.
Installation Procedure: The manual outlines a six-step process for safely installing flexible rod seals, involving careful handling and manipulation of the tool and seal.
Kit Contents: The package includes one small, one medium, and one large rod installation tool.

Generated by AI

Specs

Manufacturer part number
U-CUP
Brand
CHUSYYRAY
Has written warranty
No
Color
Silver

Current price is $20.99

Price when purchased online

Free shipping
Free 30-day returns

How do you want your item?

Ships to

Arrives by Tue, May 26

Sold and shipped by CHUSYYRAY

3.635265700483092 stars out of 5, based on 414 seller reviews(3.6)

Report an issue with this seller

Free 30-day returns

About this item

Product details

Application:
This item is rapid and safe installing tools for flexible rod seals.
Making smaller size than gland hole by turning seal to omega shape can avoid most of damages.

Features:
Includes 3 sizes to cover just about any rod seal installation job from 0.87" up
Small for rod diameters 22-40mm(0.87" - 1.57" ROD) gland hole, 6mm cross section max
Medium for rod diameters 40-70MM (1.57" - 2.75" ROD) gland hole, 8mm cross section max
Large for rod diameters 70-165MM (2.75" - 6.49" ROD) gland hole, 10mm cross section max

Warning:
Gland hole must be in the range of the sizes as below, otherwise, twistor can be damaged permanent

Manual Instruction:
1. Put one handle into holder, place the seal on the claw.
2. Lead the seal with one hand when turning the handle with the other.
3. Hold both handles then take them away from the holder.
4. Put the seal aside.
5. Release a handle then turn it ground gently.
6. Take twistor away from the gland smoothly.

Package includes:
1Pc Small size of rod
1Pc Medium size of rod
1Pc Large size of rod

Small for rod diameters 22-40mm(0.87" - 1.57" ROD) gland hole, 6mm cross section max
Medium for rod diameters 40-70MM (1.57" - 2.75" ROD) gland hole, 8mm cross section max
Large for rod diameters 70-165MM (2.75" - 6.49" ROD) gland hole, 10mm cross section max
