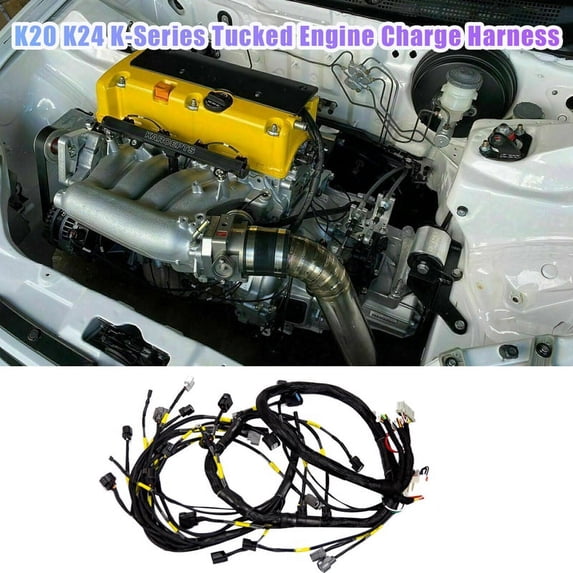

K20 K24 K-Series Tucked Engine Harness for K-Swap CRX EK EG EP3 01-05 RSX 02-04,1 x Engine Wire Harness,Black

K20 K24 Engine Harness
Applications:
K-Swap Cars
02-04 RSX Type S
02-04 RSX Base
01-05 EP3 (Type S or K24 Swap)
Note:
New design uses factory RSX connectors.
NOT fit RHD cars or RWD cars.
Features:
All plugs included except EVAP and AC
Covering is gas and crude oil and rated for -55° C to 150° C (-67° F to 320° F)
SAE Certified Automotive Grade Wiring
All plugs are labeled
Tucked design
Harness runs over valve cover (Can be covered with coil pack cover)
Injector wiring runs from under manifold between middle runners.
Ground wire relocated to stud under coil pack cover (instead of front of the valve cover)
Includes single wire temp sensor wire (For k-swap cars stock cluster)
3 Aux wires run from ECU to under intake manifold. Two ECU pins pre-installed.
Wiring long enough for both VSS low frequency or high frequency (High Frequency transmissions require repining plug and slight modification to VSS)
Each harness is inspected and tested before shipping.
RSX injectors plugs come standard
Material:ABS
colour:Black

Package Contents:
1 x Engine Wire Harness

Only the above package content, other products are not included.
Note: Light and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
