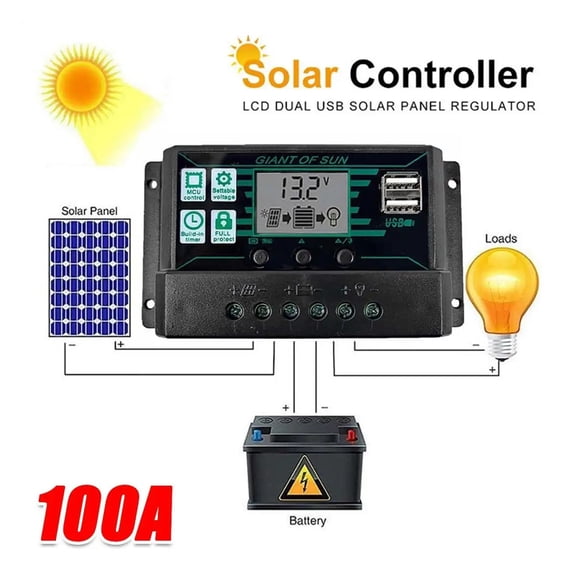

MPPT PWM 10A/20A/30A/40A/100A Auto Solar Charge Controller Dual USB DC Port LCD Display 12V 24V Solar Panel Battery Regulator ,Widely Use

Package Includes:

1 X Solar Charger Controller

1 x User Manual

Specifications:

Name: LCD Solar Controller

Main color: black

Main material: ABS

Voltage: DC 12V / 24V

Rated current: 10A/20A/30A40A/100A (optional)

Maximum photovoltaic voltage: 50V

Display: LCD screen

<10MA

Overcharge protection: 14.4V / 28.8V

Overcharge Float charge: 13.7V / 27.4V

Charge recovery voltage: 12.6V / 25.2V

Over discharge protection: 10.7V / 21.4V

Over discharge recovery: 12.6V / 25.2V

Dual USB output: 5V / 2A (charge mobile phone, Pad, etc.)

Working temperature: -35 -60

12V fits 18V solar panel, 24V fits 36V solar panel

Product size: about 133.5X70X35mm /5.26''X2.76''X1.38"

Product weight: about 155 g / 5.5 oz

Function:

1. Always keep the battery on fill voltage condition.

2. Prevent the battery from over-charging.

3. Prevent the battery from over-discharging.

4. Prevent the battery from reverse charging to solar panels during nights.

5. Reverse Polarity Protection for Battery

6. Reverse Polarity Protection for Solar Panels

7. When the battery voltage is low, the controller will automatically cut off the load from the system. If the voltage of battery is back to normal and the load will restart working.

8. According to the battery voltage grade, the controller can automatically set charge-off voltage, the load-off voltage, the load- restore voltage. (The parameter is default under 25

condition, locked by the CPU procedure, cannot adjust.)

9. The controller will automatically compensate the temperature of the charging voltage according to the changes of ambient temperature.

10. Thunder protection
