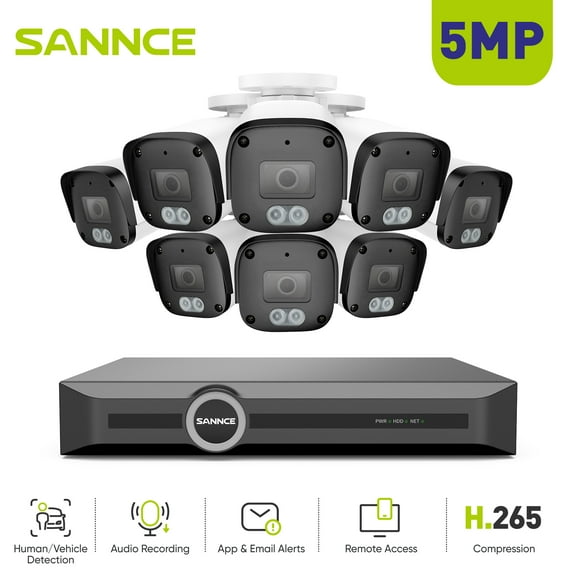

SANNCE 6MP PoE Security Camera System,8CH S+265 Surveillance NVR with 8PCS 5MP HD Weatherproof Bullet Cameras, Smart IR LED, APP Push Alert, Remote Access, 0TB HDD

Description:

NVR

· Up to 8-ch IP camera accesses

· Incoming/Outgoing bandwidth: 60Mbps/40Mbps

· S+265, H.265, S+264, H.264 video formats

· Max. decoding capability: 6MP(30fps)×1 or1080P(30fps)×4

· 4-ch synchronous playback

· Up to 6 TB capacity for each HDD

· Simultaneous HDMI and VGA outputs

· HDMI output at up to 1080P resolution

· 1×RJ-45, 10/100 Mbps self-adaptive Ethernet port

· PoE interface, 8×RJ45, 10/100 Mbps self-adaptive Ethernet port

· S+ 265 compression effectively reduces the storage spaceby up to 75%

· Support cloud upgrade

. APP:SANNCE Life

Video & Audio:

Decoding Format: S+265; H.265; S+264; H.264

IP Video Input: 8CH PoE

Video Output: ""HDMI: 1024×768(60Hz), (720P )1280×720(50Hz/60Hz), 1280×800(60Hz), 1440×900(60Hz),

(1080P)1920×1080(50Hz/60Hz),independent output

VGA: 1024×768(60Hz), (720P )1280×720(50Hz/60Hz), 1280×800(60Hz), 1440×900(60Hz),

(1080P)1920×1080(50Hz/60Hz)

Audio: G711A; G711U; ADPCM_DIV4

Incoming/outgoing Bandwidth 60/40 Mbps

Record Playback:

Multi-channel Playback: 4

Record Mode: Alarm Recording; Schedule Recording

Storage Method: Local HDD

Backup: USB storage device

Playback Function: Play/Pause/Stop/Slow/Speed/Backwards 30s/Forwards 30s/Full Screen/Backup (Video Editing)/Digital Zoom

General:

UI Language: English;German; French;Italian; Spanish

Operating Power: DC48V 1.35A

Power Consumption: <10W(without HDD&without PoE)

Working Temperature: 10 °C to 55 °C (14 °F to 131 °F)

Dimensions (W X H X D): 225 mm × 231 mm × 45.1 mm

Camera：

★5MP IR Network Bullet Camera with audio input

★2.8mm lens brings everything back to life

★Efficient S+265 compression technology

★Up to 100ft night vision with Smart IR

★Clear day and night vision with 3D DNR and DWDR

★Built-in Microphone, record with audio

★Supports Human & Vehicle Detection

★Supports cloud upgrade and mobile app

★IP67 dustproof and waterproof

★POE power supply

Image Sensor: 1/3" Progressive Scan CMOS

Main Stream: "50 Hz: 20fps 2880x1620)，25fps(2560x1440,2304x1296,1920x1080,1280x720)

60 Hz: 20fps 2880x1620)，30fps(2560x1440,2304x1296,1920x1080,1280x720)"

Sub-stream:"50 Hz: 25fps(704x576,704x288,640x360,352x288)

60 Hz: 30fps(704x576,704x288,640x360,352x288)"

Wide Dynamic Range: DWDR

Electron Shutter:1s～1/100000s

Image Processing: Support electronic zoom, horizontal flip, vertical flip, video flip, strong light suppression, backlight compensation, fog penetration, day/night mode switching, color to black conversion, white balance, wide dynamic range, electronic fog penetration, 3D digital noise reduction, Smart IR.

Min. Illumination: Color 0.03 lux (@F2.0,AGC ON)；B/W: 0 lux with IR on

Color to B/W Conversion: Support internal synchronization, black and white, color, and timing settings.

Video Parameters:The image brightness, contrast, saturation, chroma and sharpness are adjustable

Video Blocking: 4 pieces

Lens:

focal length: 2.8mm Fixed Focal Length Lens

Angle of View: Horizontal FOV 95.3°, vertical FOV 54.1°, diagonal FOV 107.3°

Aperture: F2.0

Lens Mount Types: M12

Interface Performance:

Network Port: 1 RJ45 10 M/100 M self-adaptive Ethernet port

Audio Port: Built-in MIC (Pickup Distance of 5m)

Extended Protocol: Onvif Profile S/T 、CGI

Coding Mode:

Video Compression: S+265/H.265/H.264B/H.264M/H.264H

Video Bitrate: 32Kbps~6Mbps

Main Stream Default Bitrate:4Mbps

Audio Compression Algorithm:G.711A/G.711U/ADPCM_D

Audio Sampling Rate: 8kHz/32kHz/48kHz

Light Function

Number of Infrared LEDs: 2 pcs

Night Vision Distance: Up to 100 ft/30 m

Other Functions

IE Access: IE10+、Firefox 85.0.4183.121、Edge 114.0.1823.79、Safari 15.6.1、Chrome 114.0.2

IP Address: Support static and dynamic IP addresses, and custom network cards

Network Protocol: HTTP、TCP/IP、UDP、UPnP、ICMP、DHCP、DNS、DDNS、Easy DDNS、NTP、IPv4、SSH、Unicast、ARP、RTSP、FTP

System Time Clock:NTP Time Calibration, Time Zone Setting, Daylight Saving Time

Remote Administration: Network Remote Upgrade, Parameter Settings, and Configuration Import and Export

Smart Analysis: human & Vehicle Detection

General Functions: Support snapshot, one-key recovery, password protection, IP blacklist and whitelist filtering, IP auto-adaptation, and heartbeat.

General

Housing: Metal & Plastic

Color: White & Black

Operating Power: PoE (802.3af), Max. 6W

Operating Temperature: -22 °F – 140 °F/-30 °C – 60 °C

Indoor/Outdoor Use: Indoor/Outdoor

Interface Protection: IP67, Level 4 Lightning Protection, Surge Protection up to 2KV.

Dimension (L X W X H): 6.45" X 2.6" X 2.6"/ 164 X 66 X 66mm

Weight: 0.53 lb./242g
