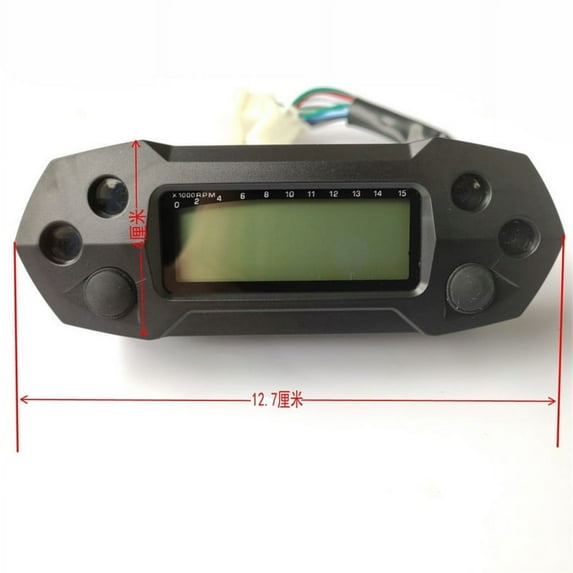

New motorcycle speedometer digital odemeter electric injection carburetor meter

the motorcycle meter can apply to different motorcycle with different wheel size.
Descriptipn:
DC12V
Speedometer LCD display, speed up 5%, 36Hz=63KM/H
Tachometer LCD display, 166Hz to 10×1000RPM,
The fuel sensor of the fuel gauge is not connected, and the related is not displayed.
button
1. Short press the left button to switch between total and subtotal.
2. In the subtotal state, long press the left button for 3 seconds to clear the subtotal.
3. Long press the right button for 3 seconds to switch between metric and imperial systems.
Backlight LCD backlight: blue
wiring
Green/Red: Neutral, negative control, LCD display
Red/Black: Speed signal
Light blue: turn right, 12V positive control, green light
Green: 12V negative
Yellow/White: Fuel signal
Blue: high beam, 12V positive control, blue light
Black: Electric door lock (12V positive)
White: low beam, 12V positive control, green light
Orange: turn left, 12V positive control, green light
sensor
Red/White: Positive sensor
Green: sensor negative
Black/white: sensor signal
package Include：
1x Mini Motorcycle Meter
1x sensor.
2x magnets
