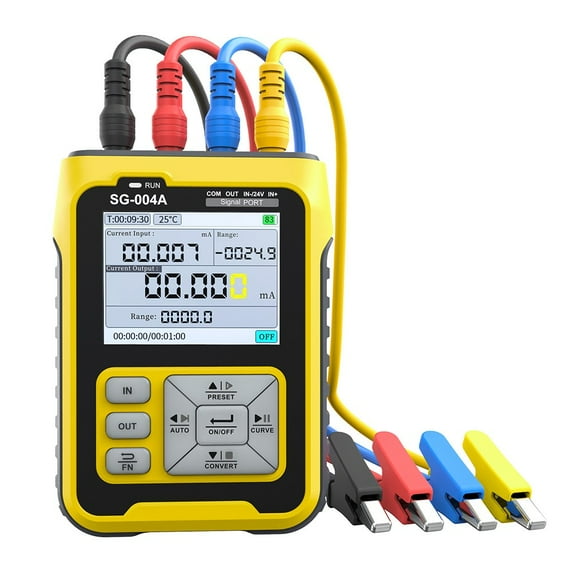

yaaqii SG-004A Mini Multi-function Handheld Signal Generator Calibrator 4-20mA

Features:

Engineering quantity display conversion: Display the signal as a physical quantity or engineering quantity; the physical quantity corresponds linearly to the engineering quantity; for example, a 420mA current signal corresponds to 0100; 4mA corresponds to 0, 12mA corresponds to 50, and 20mA corresponds to 100; the range can be adjusted by parameters.

Signal conversion: Convert the input signal to the output signal, and can convert between different physical quantities; for example: convert the input frequency signal to a current signal, and convert the signal with an input range of 0-1000Hz to a 4-20mA signal.

Programmed output: It has the output function of automatically and continuously changing the size according to the set parameters, and can choose three modes: monotonic rise, monotonic fall, and cycle.

Real-time curve: The changing for trend of the input and output signals can be displayed by drawing a curve, and the sampling time of the curve can be set, and the display curve can be automatically adjusted within the maximum and minimum range within a certain period of time.

History record and firmware upgrade: Record and view a certain amount of historical data. Support USB simulation U disk for firmware upgrade.

Specifications:

Part name: signal generator

Material: abs

Size: L82*W28*H112mm

Color: yellow

Charging port: Type-C

Model: SG-004A

Power input: 5V-12V/10W (Max)

Appearance size: L82*W28*H112mm

Battery capacity: 3000mAh

Standby time: 24h

Color: black + yellow

LCD size: 2.4in

Output signal type

Active current 0~24mA

Passive current 0~24mA

Voltage 0~24V

Frequency/PWM: 0~9999Hz

24V loop: 0~24mA

Millivolt/thermocouple: -10~110mV

Resistance/thermal resistor: 0~3900

Input signal type

Active current: 0~24mA

Voltage: 0~24V

Frequency/PWM: 0~9999Hz

Millivolt/thermocouple: -10~110mV

Resistance/thermal resistor: 0~400Ω

Package contents:

Crocodile test clips*4

004A signal generator*1

charging head*1

User manual*1

data cable*1

Note:

Different lights and screens may cause the color of the item in the picture to be slightly different from the actual item. The measurement tolerance is +/- 1-3 cm.
