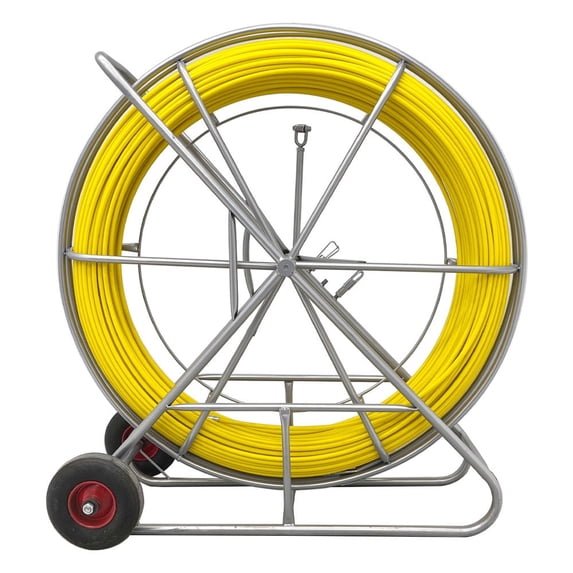

0.47" 820FT Fish Tape Fiberglass Wire Cable Threader Running Rod Duct Rodder Fishtape Puller

Introduction:
The fiberglass cable puller is a high-performance composite material device for pipeline cleaning and arrangement of cables or ropes in the pipelines. Because it has the smooth and elastic surface, the fish tape can easily guide the cables or ropes to pass through the limited space and different pipes. It has the advantages that the steel wire is added to improve the toughness and tensile strength, the reinforcing support keeps the fiberglass wire balanced and stable, the stability and the working efficiency are higher, and the practicability is enhanced.

Product Parameters:
Length: 820' (250m)
Diameter: 0.47" (12mm)
Color: Yellow
Density: >150g/m
Working situation temperature: -40℃ ~ +80℃
Material: Epoxy fiberglass (inner) and high density polyethylene (outer)
Product Size: 45.67'' x 19.69'' x 49.21'' (116x50x125cm)

Attention:
1. When the angle of the pipeline is smaller than or equal to 90 degrees, the user should pay special attention to protecting the traction head against breakage, and a certain measures should be taken to prevent the fish tape from damage when the fish tape is pulled out of the channel.
2. The bearable temperature range of the fish tape is -40℃ to 80℃，and the fish tape should not make contact with the supercool or overheated object or environment in the construction process and should be placed in a shady and cool place after use.
3. The fish tape cannot be rolled and pressed by vehicles and other heavy objects, otherwise the service life can be greatly shortened.
4. It is suggested that various unwinding pulley blocks can be used to improve the working efficiency and protect the fish tape.

Operation Method:
1. When using the fish tape, lead the fiberglass wire body out through the leading wheel, then connect the fiberglass wire body with the corresponding metal head, and guide the fiberglass wire to pass through the pipeline.
2. When the fish tape is used for cleaning, the guide head drives the cleaning tool, and the pipeline can be cleaned.
3. When the fish tape is used for arrangement of cables, a steel wire or iron wire can be led, and then the cable can be pulled by the steel wire or iron wire to enter the pipeline.

Application:
As a high-performance auxiliary tool, the fish tape can protect cables, wires and other ropes against damage in the working process, provides a safe and stable arrangement channel and can be suitable for the fields of power engineering, communication engineering, construction engineering, traffic facilities, petrochemical engineering, municipal engineering and so on.

Item Number (170553):
1 x Fish Tape 12mm*250m
