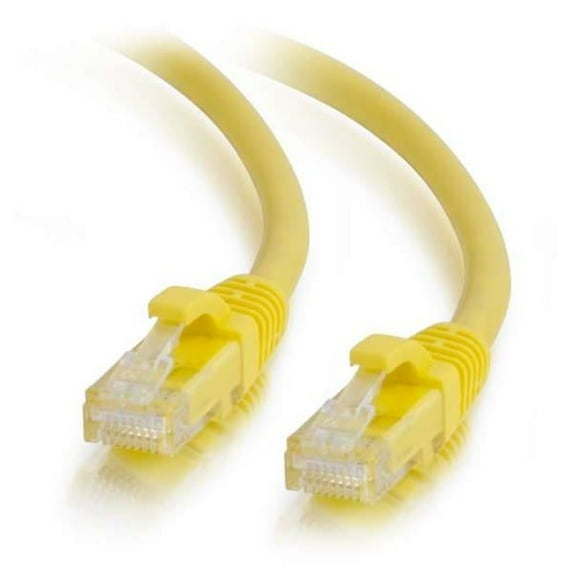

2 ft. Cat6 Snagless Unshielded-UTP Ethernet Network Patch Cable - Yellow

2 ft. Cat6 Snagless Unshielded-UTP Ethernet Network Patch Cable - Yellow

(No ratings yet)

Key item features

For fast Ethernet and Gigabit computer networks that require bandwidth-intensive voice, data, or video distribution applications. Meets all Cat6 TIA/EIA standards, and drastically reduces both impedance and structural return loss (SRL). Each of the individual pairs is bonded together to help maintain the twist-spacing throughout the line right up to the termination point. Constructed from high quality copper cable, this design minimizes Near-End Crosstalk (NEXT) levels. The molded, snagless boot prevents unwanted cable snags during installation and provides extra strain relief.

Features
  • Snagless design protects clips when plugging and unplugging
  • Standard RJ45 connectors and unshielded twisted pair wires
Conductor
  • Conductor Type - 24AWG (7/0.20), Stranded Bare Copper
  • Insulation - H-D PE
  • Diameter - 0.98 ± 0.05 mm
Connector Type
  • Connector Type - 8P8C (RJ45)
  • Connector Material - Polycarbonate
  • Contact Material - Copper Alloy, Gold Plating - 50µm
  • Hood Material - Molded PVC
Overall Cable
  • Jacket - PVC
  • Minimum Average Thickness - 0.60mm
  • Outer Diameter - 6.20 ± 0.30 mm
Specifications
  • Color: Yellow
  • Conductor DC Resistance: 9.38 Ohm 100m (maximum)
  • Impedance: 100 Ohm
  • Capacitance: 5600pf/100m
  • Voltage Rating: 30V
  • Temperature Rating: 60°C
  • Size: 2 ft.
  • Weight : 0.072 lbs
- SKU: ZX9CTG88619
