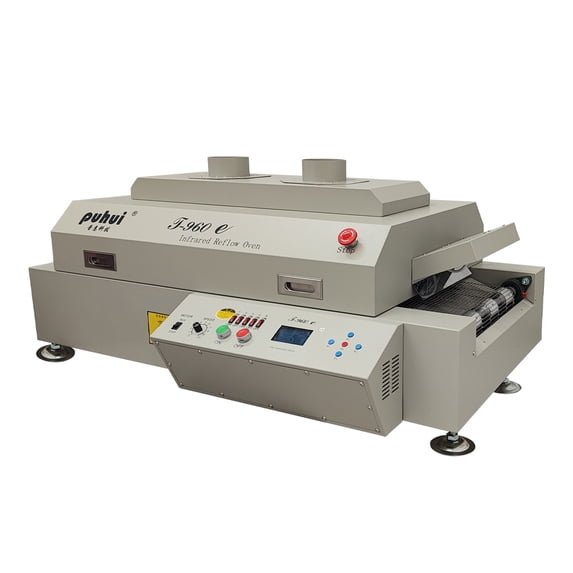

LED SMT Reflow Oven Infrared Hot Air Heating Soldering Machine with 4 Rolls Heat Tape 220V T-960e for LED SMT BGA Soldering

(No ratings yet)

Key item features

The channel reflow soldering machine has three heating areas in the upper part and two heating areas in the lower part, with a length of 960mm (37.8 ") Meet the needs of small and medium-sized production.
Adopting non-contact output of large solid-state relays can effectively avoid IC or circuit board damage caused by rapid or uninterrupted warming, making temperature control more accurate and the entire welding process more scientific and safe.
The reflow soldering machine adopts an LCD human-machine interface friendly design, easy operation, powerful functions, and greatly improves production efficiency.
By using programmable technology and preset temperature fluctuations, the entire welding process can be automatically completed to your preset waves.
The external load operation panel avoids high vibrations in the panel to enhance stability.
Built with stainless steel structure, high quality solid-state relays to prevent circuit damage. Also 4 rolls high-temperature resistant tapes included, ergonomic design simplifies operation and maintenance.

Specs

Watts
4.5 kW
Brand
Intbuying
Volts
220 V
Weight
318 lb

Current price is $2,650.00

Price when purchased online

Free shipping
Free 30-day returns

How do you want your item?

Ships to

Arrives between May 23 - May 27

Sold and shipped by TOPSELLER INC.

4.333333333333333 stars out of 5, based on 540 seller reviews(4.3)

Report an issue with this seller

Free 30-day returns

About this item

Product details

Product Overview:
Transmission system adopt imported frequency conversion motor, PID closed-loop speed, equip with all the import 1:150 turbine speed reducer, smooth operation, speed adjustable range 0-1600mm/min.
Adopt independent wheel structure and special stainless steel strut, durable wear-resisting runs smoothly, speed precision can reach ±10mm/min.
Independent cooling zone, to ensure the PCB board of low temperature when the required.
Friendly human-machine operation interface, perfect LCD display, no need to connect with the PC, can watch the whole repairing process very clearly.
Ergonomic design, practical and easily operated. Good build quality but at the same time light weight and a small footprint allows the T-960e to be easily bench positioned, transported or stored.

Product Parameter:
1. The heating zone quantity: upper3/down2
2. The length of the heating zone: 960mm
3. The heating type: IR and hot air heating
4. The cooling zone quantity: 1
5. Maximum width of PCB board: 300MM
6. The operation direction: left→right
7. Delivery options: Net transmission＋chain transmission
8. The speed of conveyer belt: 0-1600mm/min
9. The power supply: 220V
10. Peak power: 4.5KW
11. Heating up time: Around 15mins
12. Temperature control range: Room temperature～350℃
13. Temperature control mode: PID closed-loop control
14. Temperature control accuracy: ±1℃
15. PCB temperature distribution deviation: ±2℃
16. Overall dimensions: 120cm*77cm*44cm
17. Machine weight: 91.5kg

NOTE:
Customers need to prepare at least six square millimeters of power cables themselves.

Items Included: 022606
LED SMT Reflow Oven T-960e 220V

The channel reflow soldering machine has three heating areas in the upper part and two heating areas in the lower part, with a length of 960mm (37.8 ") Meet the needs of small and medium-sized production.
Adopting non-contact output of large solid-state relays can effectively avoid IC or circuit board damage caused by rapid or uninterrupted warming, making temperature control more accurate and the entire welding process more scientific and safe.
The reflow soldering machine adopts an LCD human-machine interface friendly design, easy operation, powerful functions, and greatly improves production efficiency.
By using programmable technology and preset temperature fluctuations, the entire welding process can be automatically completed to your preset waves.
The external load operation panel avoids high vibrations in the panel to enhance stability.
Built with stainless steel structure, high quality solid-state relays to prevent circuit damage. Also 4 rolls high-temperature resistant tapes included, ergonomic design simplifies operation and maintenance.
