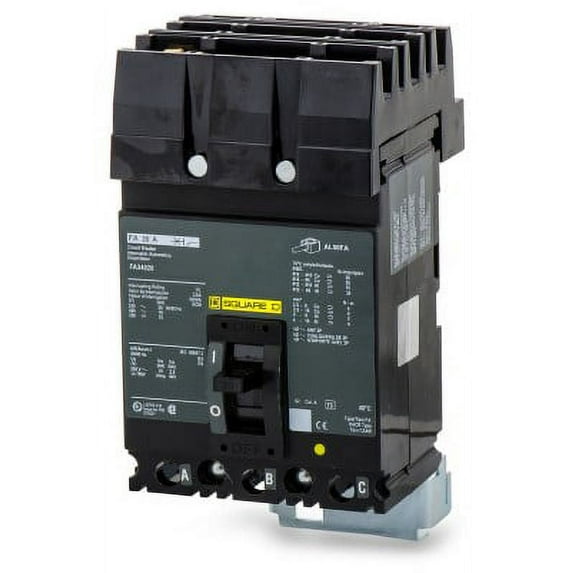

Square D FA34025 3 Pole 25 Amp 480v Circuit Breaker FA

FA34025 - Square D 3 Pole 25 Amp I-Line Circuit Breaker

Schneider Electric / Square D Circuit Breaker, Its Compact And Easy to Install, FA three poles molded case circuit breaker has F-frame, it provides thermal magnetic protection, circuit breaker has a current rating of 25 amps a voltage rating of 480 Vac/260 Vdc at 60/80 Hzs, circuit breaker has interrupting rate of 18 kilo-Amps at 480 Vac, it can accommodate copper wires of size 14 - 1/0 Awg and aluminum wires of size 12 - 1/0 Awg.

Specifications :• Manufacturer : Schneider Electric / Square D• Cat. No. : FA3425• Alternate Part No. : FA-3425• Product Type : Circuit Breaker• 240/480 Vac At 60/80 Hz, 480 Vac Star/277 Vac At 60/80 Hz (Ul/Csa/Nom)• 240/415 Vac At 60/80 Hz (Iec), 260 Vdc• Amperage : 20 Amps• No. Of Poles : 3 Pole• Interrupting Rating : 25 Kiloampere At 240 Vac, 18 Kiloampere At 480 Vac Star/277 Vac Or 480 Vac (Ul/Csa/Nom)• 10 Kiloampere At 415 Vac (Iec), 10 Kiloampere At 260 Vdc• Trip Setting 900 To 1800 Ampere• Application Power Distribution• Used On Class 660/651 I-Line[R] Panelboard/Switchboard• Fa Model• Frame Type : F• Size : 4.5 Inch W X 4.13 Inch D X 6 Inch H• Tripping Method Thermal Magnetic• Terminal Wire Size : 14 To 1/0 Awg (Copper)/12 To 1/0 Awg (Aluminum)• Approval Ul, Csa• Authentic Schneider Electric / Square D Product.
