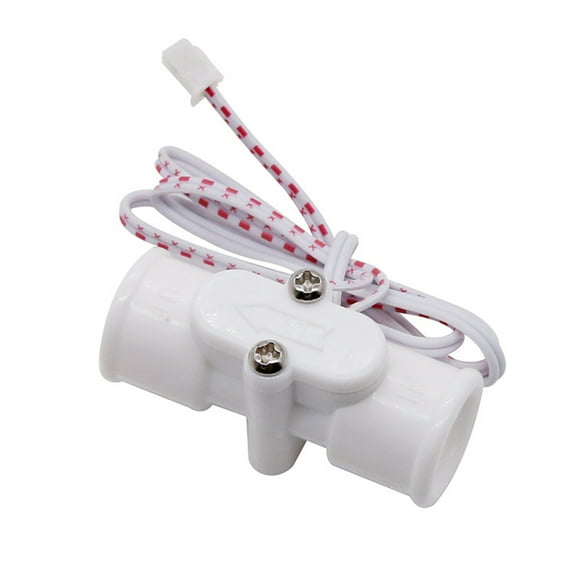

Compact- Flow G1/4" Liquid Water Flow Flowmeter Water Flow Suitable for Water Dispenser Purifier

Features:
When the water flows in the preset- flow channel, it pushes the magnet- to displace. When it moves to the corresponding - tube, the - tube conducts after sensing the magnetic field. When there is no water flow, the magnet- returns to its position under the thrust of the spring, and the - tube is disconnected after the corresponding - tube cannot sense the magnetic field.
Thread: G1/4-inch, startup- flow: 300ml/min-, response time: less than 1s.
Lightweight, reasonable size, stable , low water pressure start-, easy to install, safe to use.
Can be perfectly used for water dispenser, water purifier, water vending machine, .
High quality material, which is sturdy- and durable in use.

Specifications:
Material: Plastic
Applicable water quality: turbidity less than 1; Fe-, C-o & Ni- less than 0.3Mg-/L
Applicable water pressure: equal or less than 0.8mpa
Applicable water temperature: 5~50℃
Ambient- humidity: less than 85%
Storage temperature: -20~50℃
Thread: G1/4
Startup- flow: 300ml/min-
Response time: less than 1s
type: Normally open
Length of wire: 50cm
Cable- connection strength (outlet end of the body) : Exert 20N-10s tensile force along the - of the terminal-
Apply 20N-10s pulling force along the vertical direction of the terminal- (no damage at the connection)
Hydrostatic pressure: Open 1.05MPa for 5 minutes (no leakage or damage
Voltage-resistance: applied between live- part and non-live- part
DC160V, 1min or DC200V, 1s
(No flicker or breakdown)
closing current: 0.5A
load current :1A
On resistance :0.12Q-
Disconnect-resistance :10120
Power connection capacity :0.2PF

Note:
Please allow 1-3cm error due to manual measurement. Please make sure you do not mind before you bid.
Due to the difference between different monitors, the picture may not reflect the actual color of the item.

Package includes:
1x Water Flow
