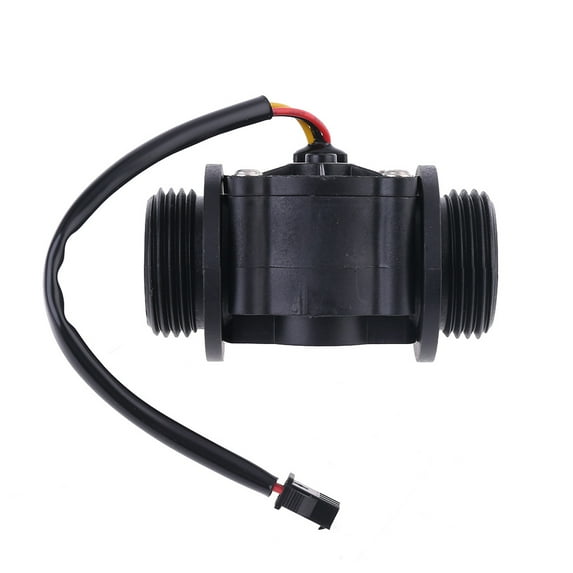

Waterproof Pressure Resistant Flow Meter Sensors G1 in Water Flow Hall Effect Flow Meter Counter 1-60L/min

Waterproof,Heat resistance,pressure resistance,cold resistance.
Easy to install.
Outer diameter: about 1.28inch
Frequency: F=4.8 * Q (L / Min) error:2% voltage :3.5-24VDC, current can not exceed 10mA, 450 output pulses/liters, F=onstant * units of flow (L / min) * for time (seconds).
Flow :1-60L/min
current:15 (for 5V)
Working voltage : 5-24 V
Load capacity:10 (for 5V)
Operating Temp:0-80℃,Operating humidity:35%-90%RH
Allow compression:Water pressure 1.75 Mpa
Insulation resistance:>100M OHM
Storage Temperature:-25¡«+80¡æ
Storage humidity:25%¡«95%RH
Output Waveform:Square ,output pulse singal.
ROHS Compliant.
Cable length:15cm.

Package includes
Flowmeter

Note:The thread is BSP, if used for NPT, need thread seal tape.
