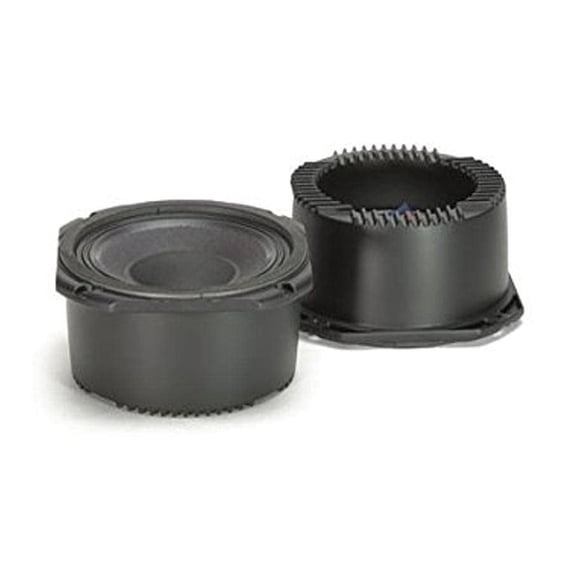

Hero image 0 of High efficiency, high power midrange specially designed to provide superior sound pressure level in a very compact size., 0 of 4

RCF

High efficiency, high power midrange specially designed to provide superior sound pressure level in a very compact size.

(No ratings yet)

Key item features

The ideal range of application are mid & mid-low frequencies.
The combination of the 3-in voice coil, the neodymium motor & the heat sink basket design makes this driver the ideal solution for most demanding applications.The total weight is reduced to less than half of a comparable ceramic midrange.
3-inch, finside/outside copper voice coil
400W continuous program power handling
107 dB Sensitivity in horn loaded application
300 Hz – 3 kHz Frequency range
High BL neodymium design
Unique aluminum sealed basket featuring vented fin heat dissipation design
Calibrated back volume for a perfect time domain transient reproduction General Specifications
Nominal Diameter: 200 / 8 mm/inch
Rated Impedance: 8 Ohms
Program Power: 400 W AES
Power handling capacity: 200 W AES
Sensitivity: 102 dB
Frequency Range: 300 Hz to 3000 Hz
Effective Piston Diameter: 168 / 6.6 mm/inch
Max Excursion Before Damage (peak to peak): 15 / 0.6 mm/inch
Minimum Impedance: 9.8 Ohms
Voice Coil Diameter: 76 / 3 mm/inch
Voice Coil Material: Aluminum
Voice Coil Winding Depth: 11 / 0.4 mm/inch
Number of layers: 2
Kind of layer: inside / outside
Top Plate Thickness: 8 / 0.3 mm/inch
Cone Material: No pressed pulp
Cone Design: Curved
Surround Material: Polycotton
Surround Design: Triple roll Thiele/Small Parameters
DC resistance: 6.6 Ohms
Mechanical factor: 3.45
Electrical factor: 0.41
Total factor: 0.37
BL Factor: 17.8 T · m
Effective Moving Mass: 10.1 g
Equivalent Cas air load: 1.65 liters
Effettive piston area: 0.021 m²
Max. linear excursion (mathematical): 3.5 mm
Voice - coil inductance at 1kHz: 1.16 mH
Half-space efficiency: 12.8% Mounting information
Overall Diameter: 238 / 9.4 mm/inch
Bolt Circle Diameter: 220 / 8.7 mm/inch
Bolt Hole Diameter: 6.5 / 0.3 mm/inch
Front Mount Baffle Cut-out: 202 / 8.0 mm/inch
Rear Mount Baffle Cut-out: 182 / 7.2 mm/inch
Depth: 101.5 / 4.0 mm/inch
Volume occupied by the driver: 2 / 0.07 liters/ft³
Net Weight: 3.5 / 7.7 kg/lbs
Shipping weight: 4.0 / 8.8 kg/lbs

Specs

Size
8"
Car speaker size class
8"
Car speaker type
Midrange
Rms power rating
200 W
Peak audio power handling
400 W
Loudspeaker sensitivity
107 dB
