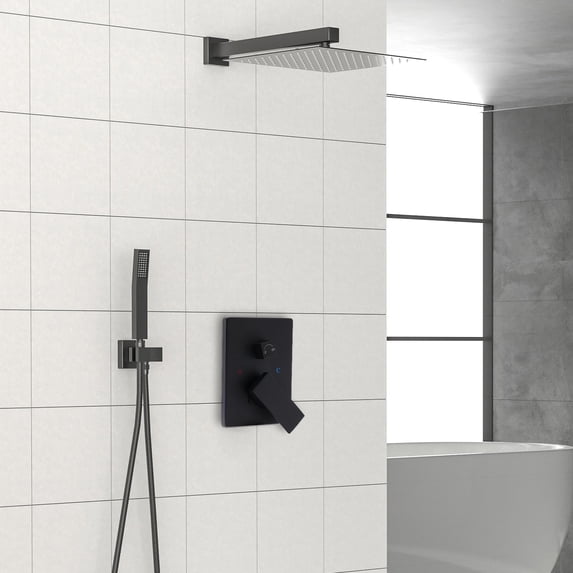

Black Shower Mixing Valve Wall Mount 2 Function Shower Faucet Valve Kit Embedded Bathroom 2 Way Outlet Rough In Pressure Balance Valve

Description

The pursuit of high-quality life begins with a delicate and durable shower mixing valve, which can improve the utilization rate of the bathroom and make bathing more relaxed and enjoyable. With its shiny metal finish, simple construction, superior materials, and delicate craftsmanship, this shower mixing valve provides a durable and practical shower tool for you. It is an ideal choice for replacing shower valves.

Application

It is suitable for most dual-function shower kits. It is ideal for the bathroom shower at home, in hotels, villas, clubs, mansions, etc.

Installation Steps

1. Fix the valve body to the wall. Please pay attention to the depth of the embedded valve. After embedding, the completion of the tiles needs to be at the same level.

2. After the tiles are pasted, remove the protective cover, and then install the cover and handles.

Details

Standard Interfaces: The NPT 1/2" threaded interfaces are tightly connected to the pipe to enhance the seal and reduce leakage.

Check Valve: The built-in check valve of the mixing valve can avoid problems such as water flow backflow, waste, and pollution, ensuring the reasonable utilization of water resources and the needs of people's healthy lives.

Clear Mark: The shower mode drawings marked on the square diverter handle and the H/C letter signs on the cover panel allow for more convenient operation.

Right Panel: Standard panel size(5.91*6.69 inches) is suitable for most bathrooms and can protect the valve body to prolong its lifespan.

Protective Covers: The clear protective covers on the valve body give this product better protection without damage during installation.

Specification

Color: Black

Shape: Rectangular

Material: ABS, Brass

Material Analysis: Cu≥59%

Processes: Electrophoresis, Stamping, Machining

Assembly Required: Yes

Installation Method: ‎Wall-Mounted, Embedded

Valve Type: Dual-function

Valve Core Type: Ceramic Cartridge

Inlet Connection Type: National Pipe Tapered

Internal Thread: NPT1/2''

Number of Ports: 2

Number of Water Inlets: 2

Using Temperature: ＜90℃/194℉

Embedded Joint: 5mm/0.2inch

Product Size: 15*17*6.8cm/5.91*6.69*2.67inch

Package Size: 23*17*16cm/9.05*6.7*6.3inch

Gross Weight: 2.03kg/4.5 lbs

Net Weight: 1.8kg/3.96 lbs

Package Included

1* Shower Mixing Valve

2* Handles

1* Cover Panel

1* Allen Key

1* English Installation Manual

All Accessories Needed for Installation

Notes

1.Please remember to check the package when it arrives.

2.Installation distance is for reference only, actual scene shall prevail. Please confirm the site size before purchasing and installing.

3.This 2-way shower valve is not compatible with other brands of valves and valve cores, and the original valve must be removed before installation. The mixing valve needs to be buried together with the PPR inlet pipe (not included) before tiling.

4.During installation, please pay attention to avoiding damage to the mixing valve itself or the embedded box, and also to avoid violating relevant regulatory requirements.

5.The water flow rate varies according to the water pressure, and a normal household water pressure of 6.6 lbs or more can achieve the normal water flow rate. It is recommended to purchase an electric water heater with a capacity of 15.85Gal or more, as the larger the hot water capacity, the longer the usage time.

6.Please read the operating manual completely before use. And pay particular attention to the safety instructions included.

7.Please allow the slight color difference caused by the shooting light and the 1-3cm error due to manual measurement. Please make sure you do not mind before you order.
