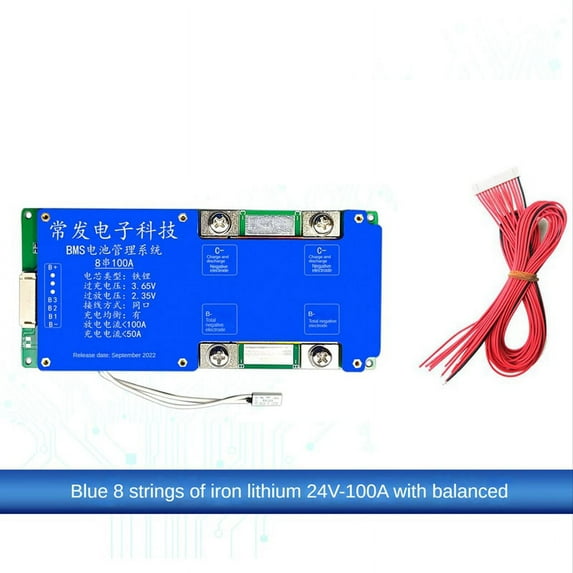

8S 24V 100A LiFePO4 Battery Protection Board Same Port with Equalization Temperature Cont C5518

Product name: Lithium battery protection board
Product type: 8S 24V 100A (with Equalization temperature control)
Specifications: 8S Lithium Iron 24V 100A
Iron lithium battery nominal: 3.2V
Overcharge: Iron Lithium 3.65±0.025V
Overdischarge: Iron Lithium 2.35±0.1V
Equalization: Iron Lithium 3.5±0.025V
Current: 100A
Charging current (same port): ≤50A
Main circuit on-resistance: ≤5MΩ
Discharge overcurrent protection: 600±10A
Temperature control protection: charge at 75°C, discharge at 75°C
Working temperature: -20℃/+80℃
Short circuit protection: 350US
Self-consumption: ≤40UA
Product application range: for Inverter, solar street lamp, electric tool, photovoltaic energy storage UPS, etc,
Product size: 145 x 65 x 11mm
color:Blue
Material:PCB+Metal

Package Contents:
1 x lithium battery protection board
1 x cable

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
