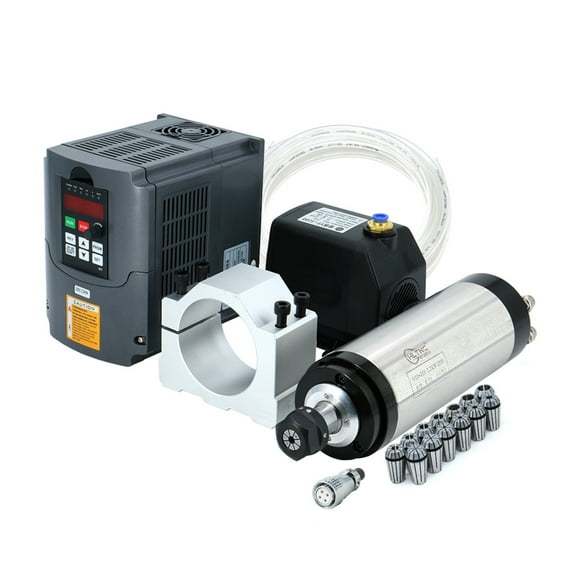

CNC Machine Tool Spindle 2200w 2.2kw 24000RPM ER20 Water Cooling Spindle VFD 80w Water Pump 80mm Bracket ER20 Collets ,Efficient Performance

1 pcs 2.2kw ER20 4 bearings water cooled spindle ( blue or silver color)

1 pcs 2.2kw inverter (YL620-A)

1 pcs 80w water pump

1 pcs 5 meter water pipe

1 pcs 80mm spindle clamp (with four mounting scew)

1 kit ER20 high accuracy collect (0.008mm) (1-11mm + 3.175mm + 6.35mm )

1 Pcs 2.2kw er20 4 bearings water cooled spindle ( blue or silver color)

1 pcs 2.2kw inverter (HY)

1 pcs 80w water pump

1 pcs 5 meter water pipe

1 pcs 80mm spindle clamp (with four mounting scew)

1 kit er20 high accuracy collect (0.008mm) (1-11mm + 3.175mm + 6.35mm )

1. 0-24000rpm ultra-high speed

2. Four high-quality bearings

3. Run Silent

4. High temperature resistance

5.Long life

ER20 Collect

Spindle Rotor

Spindle Dustproof Cover

Spindle Rotation Direction

Spindle Name Plate

Steel Shell

Model

Current

Phase

Lubricate

Collect

Bearing Type

2.2KW Water Spindle

10A

3 Grease

ER20

Voltage

Diameter

Frequency

Speed

Colling

2*7005 P4 DT

80mm

0-400Hz

0-24000rpm

Water Cooling

2*7002 P4 DT

Icon

Features

Explanation

Power-on Run key

Power-on Self-test,display frequency.

Programming key

Enterprogramming,exit programming.

Jog key

Jog key,can be used to move display focus when set

-ting parameters.

Up button

Uparrow key for parameter modification,page turn

-ing,uploading.Modify the Value.

Down button

Down arrow key for parameter modification,page

turning, and down.

Data Function key

Enter the parameter value setting state and save the

modified parameter value.

Forward and reverse switch

Switch between positive and negative during operation

Speed control button

Adjust the running speed.

Stop reset button

Stop running motor

Tech Parameters

Power:2.2kw

Input Frequency:50/60Hz

Input Phase:1 Phase

Output Current:10A

Output Phase: 3Phase

Output Frequency:400Hz

Cooling Method:V/F control;Open-loop Flux Vector Control
