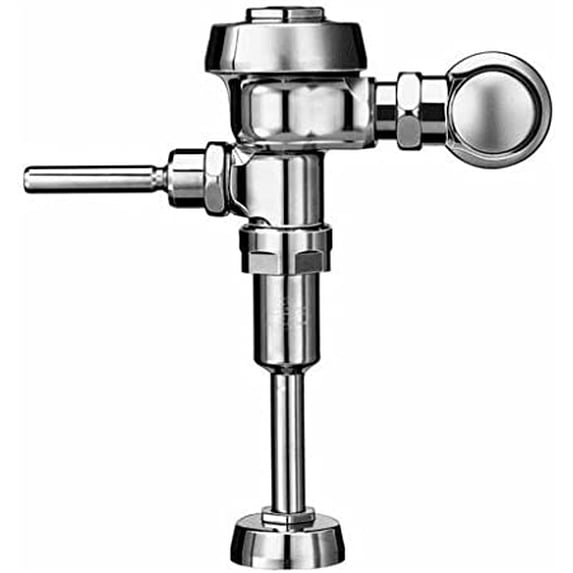

Sloan ROYAL 186 U Chrome Water Saver (1.5 Gpf) Exposed Urinal Flushometer, For 3/4" Top

Water Saver (1.5 gpf) Exposed Urinal Flushometer, for 3/4" top spud urinals.

Quiet, Exposed, Diaphragm Type, Chrome Plated Urinal Flushometer

Features:

• PERMEX Synthetic Rubber Diaphragm with Dual Filtered Fixed Bypass
• ADA Compliant Metal Oscillating Non-Hold-Open Handle with Triple Seal Handle Packing
• Free Spinning Vandal Resistant Stop Cap
• Adjustable Tailpiece
• High Back Pressure Vacuum Breaker Flush Connection with One-piece Bottom Hex Coupling Nut
• Spud Coupling and Flange for Top Spud
• Sweat Solder Adapter with Cover Tube and Cast Set Screw Wall Flange
• High Copper, Low Zinc Brass Castings for Dezincification Resistance
• Non-Hold-Open Handle, Fixed Metering Bypass and No External Volume Adjustment to Ensure Water Conservation
• Flush Accuracy Controlled by CID+ Technology
• Diaphragm, Handle Packing, Stop Seat and Vacuum Breaker molded from PERMEX+ Rubber Compound for Chloramine Resistance
• 1-1/4" Flush Connection

Valve Body, Cover, Tailpiece and Control Stop shall be in conformance with ASTM Alloy Classification for Semi-Red Brass. Valve shall be in compliance to the applicable sections of ASSE 1037, ANSI/ASME A112.19.2, and Military Specification V-29193. Installation conforms to ADA requirements.
