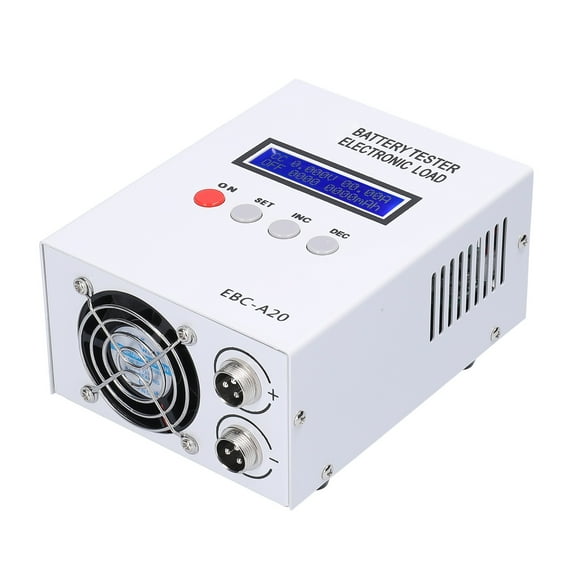

Battery Tester 30V 20A 85W Batteries Capacity Test Device 5A Recharge 20A Discharge Support PC Online Software Control

Name: Battery Tester 30V 20A 85W Batteries Capacity Test Device 5A Recharge 20A Discharge Support PC Online Software Control
Brand: Cacagoo
SKU: 16436520146
Price: 84.27 USD
Availability: InStock

(No ratings yet)

Battery Tester 30V 20A 85W Batteries Capacity Test Device 5A Recharge 20A Discharge Support PC Online Software Control Battery Tester 30V 20A 85W Batteries Capacity Test Device 5A Recharge 20A Discharge Support PC Online Software Control

Size:standard configuration US-Plug

Actual Color:Multicolor

Key item features

Compact Design: Features a compact size and light weight, ensuring portability and extended service time.
Clear Display: Equipped with a large LCD display for clear viewing of voltage, current, capacity, time, power, and energy test data.
Versatile Modes: Offers three settable working modes: DSC- (constant current discharge), DSC-CP (constant power discharge), and CHG-CV (constant current constant voltage recharge).
Broad Functionality: Capable of testing battery capacity, simulating constant power equipment, and testing both lithium and lead-acid batteries.
Flexible Testing: Supports separate recharge and discharge cycles, as well as a comprehensive recharge-discharge-recharge test sequence.
PC Connectivity: Allows for online control via PC software, enabling curve plotting, calibration, firmware upgrades, and cyclic recharge/discharge.
Precise Measurements: Provides accurate voltage testing (0.000-30.00V), current testing (0.10-20.00A), and capacity testing (up to 100Ah).

Generated by AI

Specs

Brand
Cacagoo
Dimensions
10.63 x 9.84 x 5.12 Inches
Weight
3.28 lb
Color
Multicolor

Current price is Now $84.27

You save $18.61

was $102.88

Price when purchased online

Free shipping
Free 30-day returns

How do you want your item?

Ships to

Arrives between Jun 4 - Jun 10

Sold and shipped by Personal Care Specific

3.9402985074626864 stars out of 5, based on 201 seller reviews(3.9)

Report an issue with this seller

Free 30-day returns

About this item

Product details

Battery Tester 30V 20A 85W Batteries Capacity Test Device 5A Recharge 20A Discharge Support PC Online Software Control
Specification:
Specifications:
Name: Battery Tester
Model: EBC-
Material: aluminum alloy
Voltage setting: Discaharge: 0.00-30.00V, the minimum step 0.01V
Recharge: 0.00-18.00V, the minimum step 0.01V
Current setting: Discharge: 0.10-20.00A Minimum step 0.01A automatic limit current when power is overrun
Recharge: 0.10-5.00A Minimum step 0.01A the maximum current is less than the supply current when the voltage is 10V
Mode setting: DSC-: discharge current is constant, it can be to test the battery capacity
DSC-CP discharge power is constant, to simulate constant power equipment
CHG-CV: constant current constant voltage recharging, applicable to test lithium and leadacid battery
Automatic recharging and discharging: support "automatic recharging - discharge - recharging mode", it can be to test battery capacity
Voltage test: 0.000-4.500V low pressure gear accuracy to 0.003V, error ±0.5%
4.50V-30.00V high pressure gear accuracy to 0.01V, error ± 0.5%
Current test: 0.10-20.00A, accuracy to 0.01A, error ± 0.5%
Capacity test: 10Ah, the resolution is 0.001Ah
10Ah-100Ah, the resolution is 0.01Ah
100Ah, the resolution is 0.1Ah
Connection: four wire detection, voltage test and current channel are separate wiring, to ensure measurement accuracy
LCD display: voltage, current, capacity, time, power, energy and other test data
Computer Online: dedicated USB to TTL serial port Mini USB port, not an ordinary USB cable computer control, curve plotting, calibration benchmarking, firmware upgrade, cycle recharge/discharge etc
Package size: 280 x 240 x 150mm / 11.02 x 9.45 x 5.91in
Package weight:
Simple configuration: 1200g / 2.65lb
Standard configuration: 1800g / 3.97lb

Package List:
1 x Battery Tester
1 x Test Lines
1 x USB to TTL Serial Port Line
1 x 19V 4A Power Supply

1 x Battery Tester
1 x Test Lines

Compact size, light weight and portable, wear and can provide sercive time
Large LCD display, you can see the voltage, current, capacity, time, power, energy and other test data clearly
5A recharging, 20A discharge, the maximum power is 85W
3 working modes settable design, you can set DSC-, DSC-CP, CHG-CV according to your demands
Multifunctional, it can be to test the battery capacity, simulate constant power equipment, and test lithium and leadacid battery
Support separate recharge and discharge and recharge-discharge-recharge test
Support c-omputer online control, curve plotting, calibration benchmarking, firmware upgrade, cycle recharge/discharge etc
Two configurations optional, you can choose according to your demands
