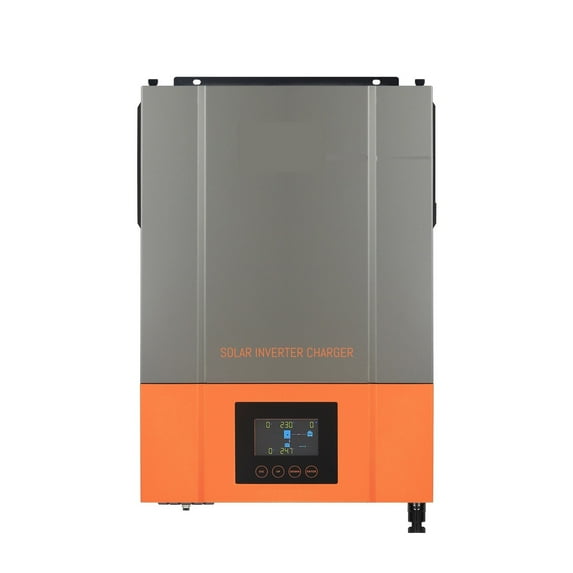

Hero image 0 of 6.2KW Hybrid Solar Inverter Pure Sine Wave Inversor 48V 230VAC PV Input Max 500vdc MPPT 120A Solar Controller Support Li ,Wide Use, 0 of 6

ChenL

6.2KW Hybrid Solar Inverter Pure Sine Wave Inversor 48V 230VAC PV Input Max 500vdc MPPT 120A Solar Controller Support Li ,Wide Use

Name: 6.2KW Hybrid Solar Inverter Pure Sine Wave Inversor 48V 230VAC PV Input Max 500vdc MPPT 120A Solar Controller Support Li ,Wide Use
Brand: ChenL
SKU: 16388458868
Price: 1286.06 USD
Availability: OutOfStock

(No ratings yet)

6.2KW Hybrid Solar Inverter Pure Sine Wave Inversor 48V 230VAC PV Input Max 500vdc MPPT 120A Solar Controller Support Li ,Wide Use 6 2KW Hybrid Solar Inverter Pure Sine Wave Inversor 48V 230VAC PV Input Max 500vdc MPPT 120A Solar Controller Support Li Wide Use 6 2KW Hybrid Solar Inverter Pure Sine Wave Inversor 48V 230VAC PV Input Max 500vdc MPPT 120A Solar Controller Support Li Wide Use

Actual Color:6.2KW Without WIFI-Out of stock

Key item features

This is a multi-function inverter/charger, combining functions of inverter, solar charger, and battery charger to offer uninterruptible power support with portable size. Its comprehensive LCD display offers user-configurable and easy-accessible button operation such as battery charging current, AC/solar charger priority, and acceptable input voltage based on different applications.
The solar charging module applies the latest optimized MPPT technology to quickly track the maximum power point of the PV array in any environment and obtain the maximum energy of the solar panel in real time and output pure sine wave to convert DC into AC.
It can be widely used in DC to AC areas, such as solar AC power system, vehicle system, RV power supply, security monitoring system, emergency lighting system, field power system, household power system, etc.

Specs

Volts
48 V
Brand
ChenL
Features
LCD Display
Has written warranty
No
Assembled product height
13.78 in
Weight
13000 g

Current price is $1,286.06

Price when purchased online

Out of stock

How do you want your item?

Out of stock

Report an issue with this seller

About this item

Product details

6.2KW Hybrid Solar Inverter Pure Sine Wave Inversor 48V 230VAC PV Input Max 500vdc MPPT 120A Solar Controller Support Li

Features:

Pure sine wave inverter

Configurable input voltage range for home appliances and personal computers via LCD setting

Configurable battery charging current based on applications via LCD setting

Configurable AC/Solar Charger priority vía LCD setting

Compatible to mains voltage or generator power

Auto restart while AC is recovering

Overload/ Over temperature/ short circuit protection

Smart battery charger design for optimized battery performance

Cold start function

MODEL

POW-HVM6.0M-48V

POW-HVM6.2M-48V

Phase

1-phase

Maximum PV Input Power

6000W/6200W

Rated Output Power

6000W

6200W

Maximum Charging Power

6000W/6200W

GRID-TIE OPERATION

PV Input(DC)

Nominal DC Voltage/Maximum DC Voltage

360VDC/500VDC

MPPT Voltage Range

120VDC~450VDC

GRID OUTPUT(AC)

Nominal Output Voltage

220/230VAC

Output Voltage Range

195.5-253VAC

Nominal Output Current

15.7A 26.1A

Power Factor

>0.9

EFFICIENCY

Maximum Conversion Efficiency(DC/AC)

97%

Click 6.0

Click 6.2

AC INPUT

AC Start-up Voltage/Anto Restart Voltage

120-140VAC/180VAC

Acceptable Input Voltage Range

90-280VAC OR170-280VAC

PV Input(DC)

Nominal DC Voltage

500VDC

MPPT Voltage Range

120VDC-450VDC

BATTERY MODE OUTPUT(AC)

Nominal Output Voltage

48VDC

Output Waveform

Pure sine wave

Efficiency(DC to AC)

94%

GENERAL

Dimension D *W *H

420*310*120

Net Weight(kgs)

11.5

INTERFACE

Communication Port

RS232/WIFI

ENVIRONMENT

Humidity

0-90%

12.RS-232 communication port

11.Circuit breaker

10.Battery Input

9.PV Input

8.AC Output

7.AC Input

6.Power on/off switch

5.Function buttons

4.Fault indicator

3.Charging indicator

2.Status indicator

1.LCD Display

Related Products:solar charge controller,solar controller,charge controller,solar charge controller 12v,solar inverter,solar controller 12v,solar panel controller,solar panel charge controller,solar panel controller 12v,12v solar charge controller,12v charge controller,charge controller 12v,12v solar battery charger,pwm controller,solar panel with charge controller

This is a multi-function inverter/charger, combining functions of inverter, solar charger, and battery charger to offer uninterruptible power support with portable size. Its comprehensive LCD display offers user-configurable and easy-accessible button operation such as battery charging current, AC/solar charger priority, and acceptable input voltage based on different applications.
The solar charging module applies the latest optimized MPPT technology to quickly track the maximum power point of the PV array in any environment and obtain the maximum energy of the solar panel in real time and output pure sine wave to convert DC into AC.
It can be widely used in DC to AC areas, such as solar AC power system, vehicle system, RV power supply, security monitoring system, emergency lighting system, field power system, household power system, etc.

info:

We aim to show you accurate product information. Manufacturers, suppliers and others provide what you see here, and we have not verified it.
