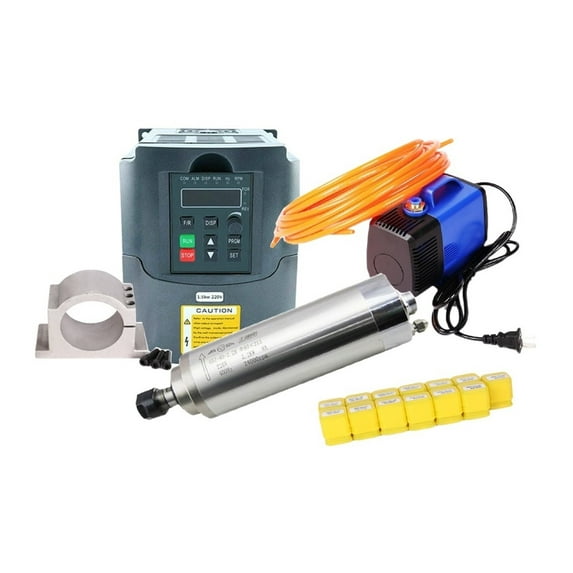

1.5kw/2.2kw Water Cooled Spindle CNC Spindle Motor+2.2KW VFD+ 80mm Clamp + Water Pump +13pcs ER20 Collet For CNC Router ,Easy to Use

Packing Includes:

2.2kw set:

1 x 2.2KW CNC Water Cooled Spindle

1 x 2.2KW VDF

1 x 3.5M Water Pump

1 x 5M Water Pipes

1 x 80mm Spindle Clamp

13 x ER20 Collet (1,2,3.175,4,5,6,7,8,9,10,11,12.7,13mm)

1.5kw set:

1 x 1.5KW CNC Water Cooled Spindle

1 x 1.5KW VDF

1 x 3.5M Water Pump

1 x 5M Water Pipes

1 x 65mm Spindle Clamp

13 x ER11 Collet (1,2,3.175,4,5,6,7,8,9,10,11,12.7,13mm)

Fearture:

1. Water-cooled spindle motor

Size: 80mm

Power: 2200W

Frequency: 0-400Hz

Speed: 0-24000rpm

Water Cooling ER20 collet

Runout off: less than 0.1mm

Germany SKS 4pcs bearing

Bearing type: 4pcs bearing C7005X2 C7002X2

Grease Lubrication

2.Inverter:

We also stock 380V(+/-15%), please contact .

Input Frequency: 48-63 Hz

Output Frequency: 0-400 Hz

Input Phase: 1 or 3 phase

Output Phase: 3 phase

3.ER20 Collet 1 Set:

Gripping Range: 1MM to 13MM (1,2,3.175,4,5,6,7,8,9,10,11,12.7,13mm)

4.Water Pump:

Structure: Single-stage Pump

Pressure: High Pressure

Application: Submersible
