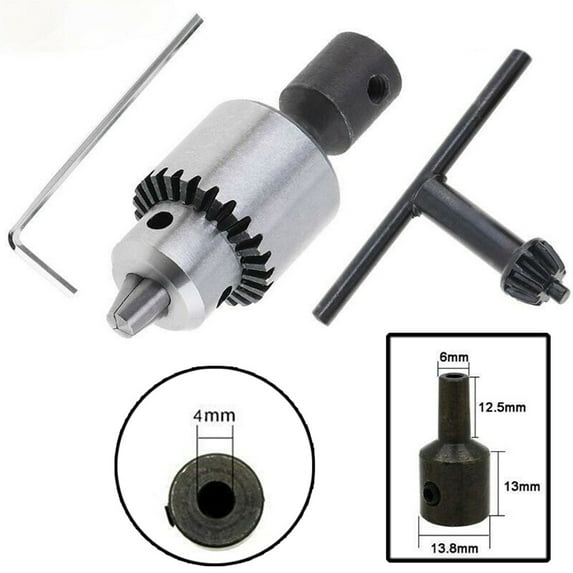

JT0 Micro Motor Drill Chuck Clamping Range 0.3-4mm Electric Motor Shaft 4mm

Features:

*High precision screw thread and tapered hole.

*Strong impact resistance.

*Compatible with impact dril and different power electric drill.

*For milling machine, lathe, drilling machine, wood working machine.

*The shank with scrw can be tight and flex for you.

*Connector optional bottom diameter size: 4mm, 5mm, 6mm, 8mm.

Specification:

Product name: Micro Motor Drill Chuck

Material: Metal

Color: As shown

Clamping Range: 0.3-4mm

Height: 35mm

Outer diameter: 21mm

Taper: 2 degrees 49 minutes 24.7 seconds

Connection size: JT0 (inner hole diameter is 6 mm)

Optional Connector Size: 4mm, 5mm, 6mm, 8mm

Suitable for: Micro Motor

Quantity: 4Pcs Set

Package Included:

1 × Drill Chuck

1 × T Spanner

1 × L Spanner

1 × Connector

Note:

1.Transition: 1cm=10mm=0.39inch.

2. The real color of the item may be slightly different from the pictures shown on website caused by many factors such as brightness of your monitor and light brightness.

3. Please allow slight manual measurement deviation for the data.
