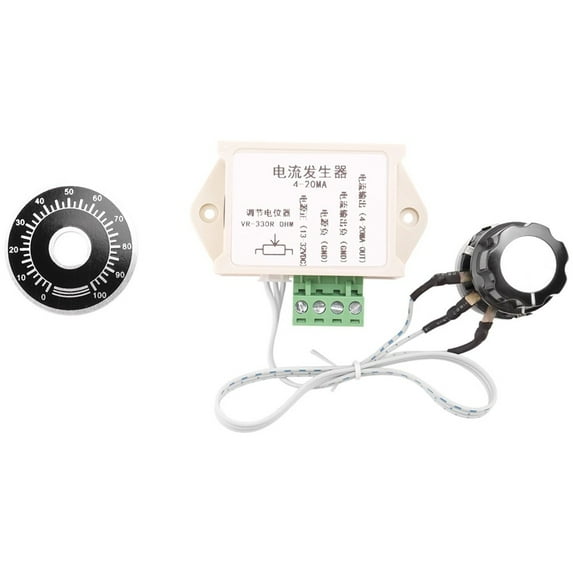

Dreamhall 1Pcs 4-20Ma Signal Generator Current Generator Adjustable Analog Current Module

Features:

*Power Supply Requirements: The input power supply is a DC voltage range of 3.3-30V, with a recommended operating voltage of 12-24V DC.

*Current Output Adjustment: The device allows for manual adjustment via a potentiometer to generate a 4-20mA current output, suitable for applications requiring a 4-20mA analog output.

*Constant Current Capability: The output current can be automatically stabilized at the set point based on user adjustments, and can also function as a constant current source, with a maximum output current not exceeding 20mA.

*Compact Dimensions: The dimensions of the product are 73mm in length, 52mm in width, and 27mm in height.

*Application Versatility: This device is designed for various applications where current output is essential.

Specifications:

Part Name: Current Generator Module

Material: Plastic,Metal

Size: 73*52*27mm

Color: As shown in the picture

Power supply positive (3-32V): connected to the positive end of the DC power supply, 3-32VDC

Power supply negative ( for GND): connected to the negative end of the DC power supply

Current output negative ( for GND): output current 4-20MA negative end

Current output (4-20MA-OUT): output current 4-20MA positive end

Adjustment potentiometer: can output 4-20MA range, clockwise to increase, counterclockwise to decrease.

Package Content:

1 x Current Generator Module

Note:

1. The real color of the item may be slightly different from the pictures shown on website caused by many factors such as brightness of your monitor and light brightness.
2. Please allow slight manual measurement deviation for the data.
