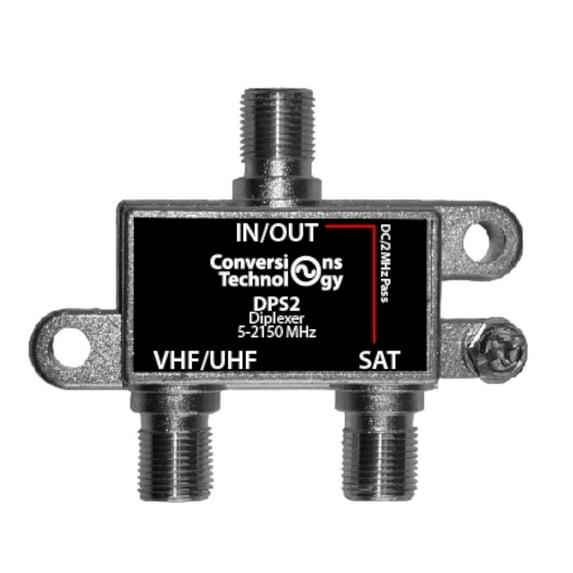

Satellite | Diplexer

UHF/VHF Satellite Diplexer: Engineering Excellence for Signal Management Our UHF/VHF Satellite Diplexer is designed to seamlessly combine or separate your satellite and terrestrial signals, ensuring flawless transmission with its meticulously engineered specifications. Ideal for diverse conditions, this diplexer facilitates efficient signal integration with minimal loss. Key Specifications: Frequency Response: 5-806 MHz for UHF/VHF, ensuring broad coverage for signal transmission. Insertion Loss: 1.5-2.0 dB from 5 to 806 MHz, and 1.5-2.5 dB from 950 to 2150 MHz, for efficient signal pass-through. Flatness: Maintains 1.2-1.5 dB from 5 to 806 MHz, and 1-1.5 dB from 950 to 2150 MHz, guaranteeing uniform signal strength. Return Loss: 15-11 dB for UHF/VHF and 12-11 dB for Satellite Band, ensuring clear signal transmission. Stop Band Attenuation: 40-35 dB from 5 to 806 MHz and from 950 to 2150 MHz, for superior signal isolation. DC Through Loss: Minimal at .5Vdc with a max. current draw of 2 A, satellite side only, facilitating power pass-through. Applications: Seamless integration of satellite and terrestrial signals for digital entertainment centers. Efficient signal management in complex broadcast environments. Reliable performance in both residential and commercial satellite systems. With its comprehensive specifications and robust design, the UHF/VHF Satellite Diplexer stands as a cornerstone of signal integration technology, ensuring high-quality signal transmission and reception across a wide range of applications.
