Hero image 0 of Schlage Electronics M490 Electromagnetic Lock 1500 lbs Holding Force, 0 of 1

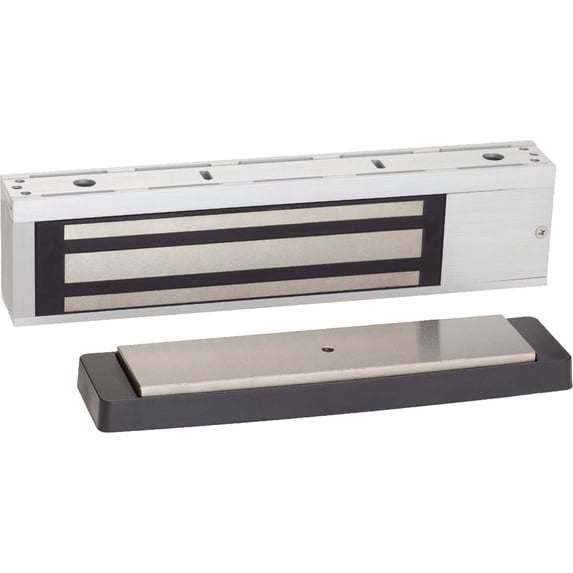

Schlage Electronics M490 Electromagnetic Lock 1500 lbs Holding Force
(No ratings yet)
Key item features
- Bayonet mount makes installation simpler by not requiring magnet to be held overhead while mounting screws are installed
- Non-handed
- 1500 lbs Hold Force
- UL1034 and BHMA Grade1 certified
- Limited Lifetime Warranty
Specs
- BrandSchlage
- ColorMulticolor
- Rec. useInswing Door, Herculite Door
- ModelM400
Price when purchased online
Not Available
How do you want your item?
Not available
About this item
Product details
The M400 Series line of electromagnetic locks from Schlage are designed with the customer in mind to be robust, easy to install, and secure. The new bayonet mounting feature makes installs easier, allowing the installer to have their hands free during the mounting process. There is no need to consider door handing as all the M400 Series electromagnetic locks are both non-handed and symmetrical, allowing optimum placement of the magnet no matter the application. All M400 Series locks have automatic voltage sensing for 12 and 24 volts along with polarity protection to make wiring less complex. The M490 provides basic security.
- Bayonet mount makes installation simpler by not requiring magnet to be held overhead while mounting screws are installed
- Non-handed
- 1500 lbs Hold Force
- UL1034 and BHMA Grade1 certified
- Limited Lifetime Warranty
info:
We aim to show you accurate product information. Manufacturers, suppliers and others provide what you see here, and we have not verified it. Â
Specifications
Features
- Wire gauge: 14-22AWG
- Temperature: 0º-49º C
- Certifications: UL1034, UL10C, ANSI/BHMA156.23
- New design allows for RH/LH configuration in the field
- Armature mount allows armature to pivot compensating for slight opening imperfections
- Automatic Voltage Selection (AVS) senses the voltage applied to the lock and responds accordingly
- Bayonet mount makes installation simpler by not requiring magnets to be held overhead while mounting screws are installed
Brand
Schlage
Color
Multicolor
Rec. use
Inswing Door, Herculite Door
Warranty
Warranty information
Lifetime
