EBC-A20 Battery Capacity Tester Lithium Lead Acid Lithium Iron Ternary Charge And Discharge Instrument 5A Charge 20A Discharge ,Perfect for Mechanics

Product Description

EBC-A20 is a battery tester with charge and discharge function. It is suitable for lithium battery/lead acid capacity test (charge 5A, discharge 20A, maximum power 85W), support separate charging, discharging and charge and discharge test, support connection The computer can be recharged and refilled multiple times with online software and has more extended functions.

Parameter:

Power supply mode: DC19V-20V, current above 3.5A

Voltage setting: 0.00-30.00V, minimum step 0.01V (maximum voltage is 18V when charging)

Current setting:

Discharge: 0.10-20.00A, minimum step 0.01A (automatic current limit when power exceeds limit)

Charging: 0.10-5.00A, minimum step 0.01A (maximum current depends on supply current)

Mode setting:

DSC-CC (constant current discharge): constant discharge current for testing battery capacity

DSC-CP (constant power): constant discharge power for simulating constant power equipment

CHG-CV (constant pressure charge): constant current and constant voltage charge, support lithium battery and lead acid

Automatic charge and discharge: support automatic "charge-discharge-charge" mode, test battery capacity

Voltage measurement:

0.000-4.500V (low pressure), accurate to 0.003V, error ±0.5%

4.50V-30.00V (high pressure), accurate to 0.01V, error ±0.5%

Current measurement: 0.10-20.00A, accurate to 0.01A, error ±0.5%

Capacity measurement:

Within 10Ah, resolution 0.001Ah

10Ah-100Ah, resolution 0.01Ah

Above 100Ah, resolution 0.1Ah

Note:

This model does not support Ni-MH or charging. Optional features are required: EBC-A05 or EBC-A10 or EBC-A10H

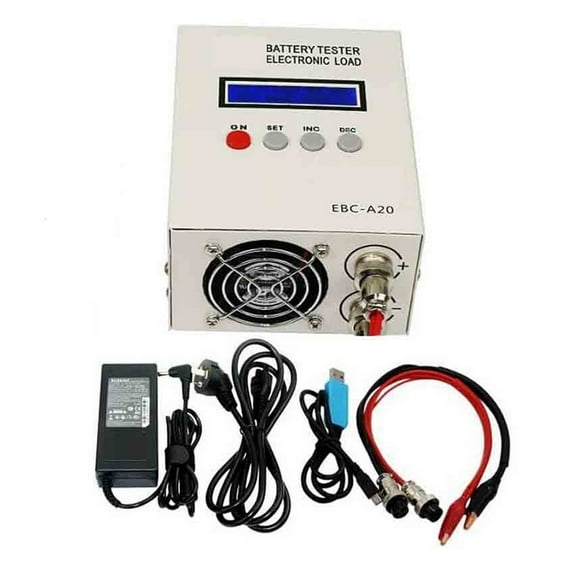

Package Include:

1x tester

1x Online line

1x test lines

1xpower cord

Online software:
