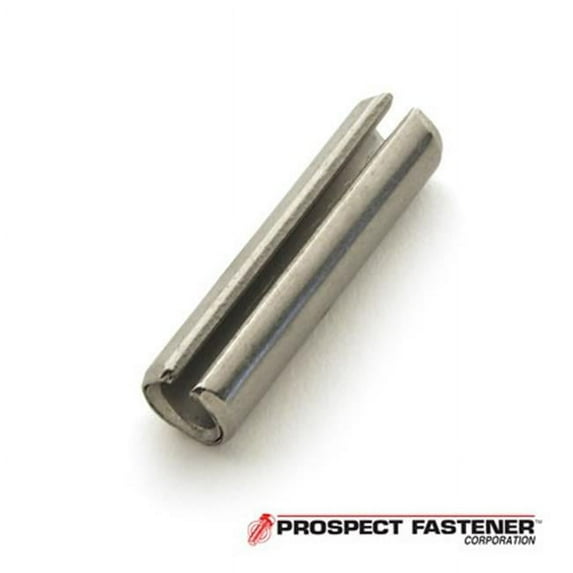

Driv-Lok .18 x 1 in. Slotted Pin 420 Stainless Steel Passivated 100 Pieces

Asme b18.8.2 compliant, the Driv-Lok is a high-quality slotted pin made of 420 stainless steel. The slots on the pin allow for compression, making it suitable for various applications. With an overall length of 1 inch and a nominal diameter of 3/16 inch, this pin offers durability and reliability. It has a Rockwell hardness rating of Rc43-52 and a double shear strength of 4150 lbs. The usable length is 1 inch, and the callout size is 3/16 x 1 inch. Each pack contains 100 pieces, and the item weight is 0.25 lbs.

• Material - 420 stainless steel
• Color / finish - passivated
• Overall length - 1 in.
• Nominal diameter - 3/16 in.
• Diameter - .197 in.
• Rockwell hardness rating - Rc43-52
• Double shear strength - 4150 lbs.
• Usable length - 1 in.
• Callout size - 3/16 x 1 in.
• Pack - 100 pieces
• Item weight - 0.25 lbs.

• Asme b18.8.2 compliant
• Slots allow for compression
• Series - Sltp
