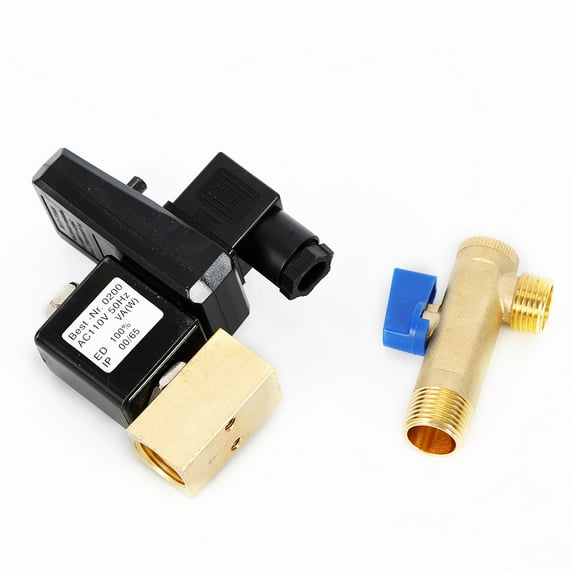

Miumaeov Timing Drain Valve AC 1/2 Multifunction Automatic Electronic Timed Two-Way Direct-Acting Valve Air Compressor Water Tank Gas Tank Auto Drain Valve

Installation:

Clean the compressed air system before installing.

Attention to the direction of the arrow when the valve body; outlet do not use the impact of the hose does not impact.

The supply voltage must be the same as the drain valve voltage; when using DC, the positive pole must be connected to the connector "1".

The factory has been connected to the cable drain valve, fade for the fire line L, blue for the zero line N, yellow and green color for the safe ground GND.

Always tighten the long screws on the terminal box to prevent the water from burning.Timer Setting:

Left knob to set the discharge time, the right knob to set the interval time; the first discharge time of 2s, the interval time is 20min, and then need to be further adjusted.

Package Include:

1 x Drain Valve

Specification

Product Name Timing Drain Valve

Voltage AC110V 50Hz

Voltage Range 10%

Time Interval ( OFF ) 0.5--45 minutes (Adjustable)

Discharge Time ( ON ) 0.5--10 seconds (Adjustable)

Manual Test Button Yes( Micro Switch)

The Current Consumption Max 4mA

Shell Material Flame Retardant ABS Plastic

Electrical Connection DIN43650A

Indicator Lamp LED Indicating Power ON / OFF

Type Two-Way Direct-Acting Valve

Flow Aperture 5 mm

Insulation Class H

In / Out Port Size 1/2"

Maximum Working Pressure 1.6Mpa

Maximum Temperature 90 C

Valve Material Forging Brass
