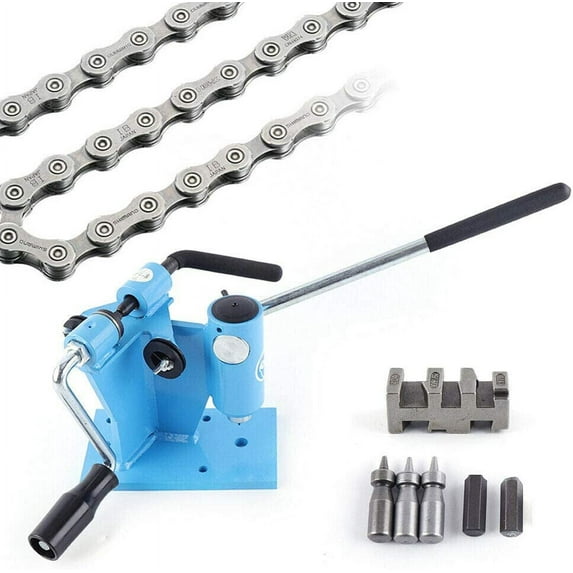

FETCOI Archer Chainsaw Saw Chain Breaker Spinner Repair Tool Chain-integrated Machine
Key item features
- This is the latest chain-breaking, chain-integrated machine with a simple structure and a light overall design that meets the multiple functions of the repair chain.
- To avoid possible injury to operator and/or bystanders, carefully read all instructions concerning assembly, operation, and maintenance of this tool.
- Make certain that chain breaker has been mounted securely on flat, clean working surface. Check mounting regularly.
- Check components on chain breaker regularly for wear and general condition.
- Always wear approved safety accessories for hands and face when using this tool.
Specs
- Compatible modelsArcher
- BrandFetcoi
- MaterialChain
- Has written warrantyNo
- Free shipping
Free 30-day returns
How do you want your item?
Similar items you might like
Based on what customers bought
107713-01 Chainsaw Sprocket Gear Suitable for 717-04749 71704749 075752 $16.68
$1668current price $16.68107713-01 Chainsaw Sprocket Gear Suitable for 717-04749 71704749 075752
Chainsaw Saw Chain Bench Breaker Spinner Combo Professional Repair Tool Kits TOP for Dismantling and Linking Chains of Chainsaws and Electric Saws. $88.10
$8810current price $88.10Chainsaw Saw Chain Bench Breaker Spinner Combo Professional Repair Tool Kits TOP for Dismantling and Linking Chains of Chainsaws and Electric Saws.
Goodhd Chainsaw Bar Cover 20" 22" 24" Scabbard Chainsaw $7.19 Was $12.00
$719current price $7.19, Was $12.00$12.00Goodhd Chainsaw Bar Cover 20" 22" 24" Scabbard Chainsaw
2 in 1 Chainsaw Chain Breaker and Spinner Combo, Professional Repair Chainsaw Saw Chain Breaker Spinner Combo Tool Kit Chain-Integrated Machine $93.00
$9300current price $93.002 in 1 Chainsaw Chain Breaker and Spinner Combo, Professional Repair Chainsaw Saw Chain Breaker Spinner Combo Tool Kit Chain-Integrated Machine
Chainsaw Chain Breaker and Spinner Combo Professional Tool Kits for Chainsaw Maintenance and Repair $88.83
$8883current price $88.83Chainsaw Chain Breaker and Spinner Combo Professional Tool Kits for Chainsaw Maintenance and Repair
Raindrops 10Pcs Chainsaw Chain Tensioner Adjuster Screw for Lawn Mower and Chainsaw Tools Metal Replacement Parts for Chain Adjusting $7.17
$717current price $7.17Raindrops 10Pcs Chainsaw Chain Tensioner Adjuster Screw for Lawn Mower and Chainsaw Tools Metal Replacement Parts for Chain Adjusting
2in1 Chainsaw Bench Chain Breaker & Rivet Spinner SharpenerChain Saw Tool Kits $85.50
$8550current price $85.502in1 Chainsaw Bench Chain Breaker & Rivet Spinner SharpenerChain Saw Tool Kits
Chain Brake Handle Replacement for 017 018 MS170 MS180 Chainsaw #1130 792 9100 $13.99
$1399current price $13.99Chain Brake Handle Replacement for 017 018 MS170 MS180 Chainsaw #1130 792 9100
Archer Chainsaw Saw Chain Spinner Repair Tool Professional Bench Mounted $102.98
$10298current price $102.98Archer Chainsaw Saw Chain Spinner Repair Tool Professional Bench Mounted
70.7cc Top Handle Gas Power Chainsaw with 28'' Bar Chain Fit For Husqvarna 372XP $20.99
$2099current price $20.9970.7cc Top Handle Gas Power Chainsaw with 28'' Bar Chain Fit For Husqvarna 372XP
3-Pack of chainsaw Chain 325 Pitch 063 Gauge 62 DL Fits Stihl 26RM3 62 $48.00
$4800current price $48.003-Pack of chainsaw Chain 325 Pitch 063 Gauge 62 DL Fits Stihl 26RM3 62
ProPart Chain Brake Sprocket Cover Complete Assembly for Stihl MS200T 020T MS200 Chainsaw Replaces 1129 792 9100 and 1129 640 1702 $35.99
$3599current price $35.99ProPart Chain Brake Sprocket Cover Complete Assembly for Stihl MS200T 020T MS200 Chainsaw Replaces 1129 792 9100 and 1129 640 1702
Chainsaw Saw Chain Bench Breaker Spinner Combo Professional Repair Tool Kits TOP $96.31
$9631current price $96.31Chainsaw Saw Chain Bench Breaker Spinner Combo Professional Repair Tool Kits TOP
Chain Brake Handle Lever Replacement for Stihl MS251 Chainsaw $15.99
$1599current price $15.99Chain Brake Handle Lever Replacement for Stihl MS251 Chainsaw
15 out of 5 Stars. 1 reviewsBaluue Grinding Tool Chainsaw Sharpener Iron Hexagonal 2Pcs $8.93
$893current price $8.93Baluue Grinding Tool Chainsaw Sharpener Iron Hexagonal 2Pcs
1252 642 1201 Chain Sprocket 1/4 “P 7T fit-for Stihl MSA120 Chainsaw,brush cutter $19.00
$1900current price $19.001252 642 1201 Chain Sprocket 1/4 “P 7T fit-for Stihl MSA120 Chainsaw,brush cutter
Professional Chain Saw Chain Spinner Repair Tool,Bench Chain Breaker $134.99
$13499current price $134.99Professional Chain Saw Chain Spinner Repair Tool,Bench Chain Breaker
Chain Brake Kit For Poulan 3816/4018/3314/530071893 Chainsaw Chain Brake Garden Power Tool For Precise & Controlled Cutting $21.71
$2171current price $21.71Chain Brake Kit For Poulan 3816/4018/3314/530071893 Chainsaw Chain Brake Garden Power Tool For Precise & Controlled Cutting
Goodhd On/Off Stop Switch For Chinese Chainsaw 2500 25Cc For Timberpro For Lawnflite For Carlton $3.80 Was $7.95
$380current price $3.80, Was $7.95$7.95Goodhd On/Off Stop Switch For Chinese Chainsaw 2500 25Cc For Timberpro For Lawnflite For Carlton
EGO 2823860001 Chainsaw Side Cover Assembly for Chain Saw CS1400 CS1600 (4-Pack) $47.95
$4795current price $47.95EGO 2823860001 Chainsaw Side Cover Assembly for Chain Saw CS1400 CS1600 (4-Pack)
About this item
Product details
Assembly Instructions:
Chain breaker comes supplied already assembled excluding handle portion (1).See exploded view of product.
BENCH MOUNTING
Step 1. Chain breaker is equipped with two holes for mounting. Lag screws or bolts (not supplied) may be used to hold the unit in position. (llust, A)
Mount chain breaker unit flush with side or front of bench area. (llust, A)
RIGHT OR LEFT HAND USE
Chain breaker comes ready for right-handed use. If lft-handed use is preferred, follow the instuctions below.
Step 1. Unscrew set screw (3) and remove handle (1). (llust. B)
Step 2. Remove plastic cap (5). With screwdriver, depress spring-loaded punch holder (6) to free up cam
(2). (llust. C-D)
Step 3. Slide cam (2) out right side of chain breaker unit. (Ilust. E)
Step 4. Reinsert cam (2) into opposite side of chain breaker unit. Depress punch holder (6) and insert
cam. (llust. F)
Step 5. Replace plastic cap (5) and reinsert handle (1). Tighten set screw (3) with Allen wrench (4).
Step 6. Remove stop pin (10) from right side of unit and reinsert into left side. (llust. G)
*REPLACING PUNCH Step 1. To remove worn or damaged punch (9), loosen set screw (7) with Allen wrench (4). (llust. H)
Step 2. Insert new punch (9) into punch holder(6) (push punch up until fully seated). Tighten set screw
(7). (lst.)
*Instructions
How to Break Chain:
Step 1. Insert chain portion to be broken into the slot of the adjustable anvil(llust. J)Tighten adjustment knob until chain is securely positioned. Position cutter as shown.( llust.K) IMPORTANT: It is not necessary to re-adjust anvil when breaking multiple loops of chain of the same chain type.
Step 2. Position rivet head directly under punch and pull handle (1) down just far enough to push rivet out (do not use excessive force). (llust. L)
NOTE: A. Important - when breaking chain at cutter, make sure cutter is in correct
- This is the latest chain-breaking, chain-integrated machine with a simple structure and a light overall design that meets the multiple functions of the repair chain.
- To avoid possible injury to operator and/or bystanders, carefully read all instructions concerning assembly, operation, and maintenance of this tool.
- Make certain that chain breaker has been mounted securely on flat, clean working surface. Check mounting regularly.
- Check components on chain breaker regularly for wear and general condition.
- Always wear approved safety accessories for hands and face when using this tool.
