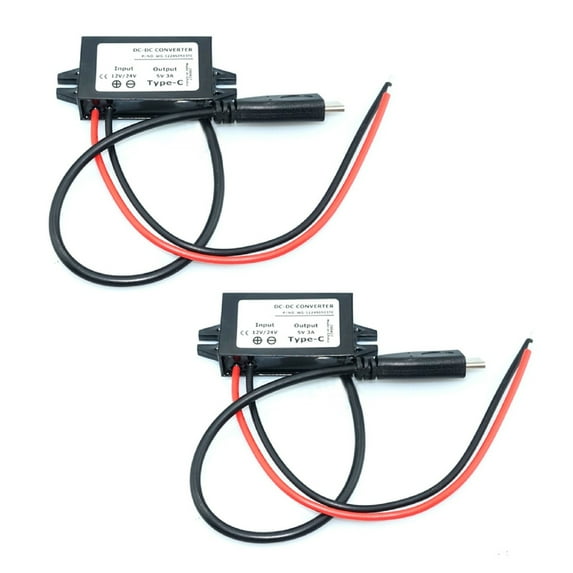

2 Pcs 12V/24V To 5V Usb C 3A 15W Dc-Dc Converter Step-Down Module Power Adapter

Features:
Input Voltage: DC 12V/24V, Output Voltage: DC 5V; Output Current:3A max; Output Power:15W max
24V/12V to 5V Converter Output USB C connector; Waterproof level IP68, for CE, ROHS certified；Conversion rate up to 91%
This product has reverse polarity protection at the input end. The product can automatically identify the charging device mode and handshake with the device through the corresponding USB charging protocol to obtain the maximum charging current, saving charging time while protecting the charging device
Input reverse connection protection/overload/overcurrent/low voltage/overheat and output short circuit protection
Compatible with most brands of mobile phones, tablets, and laptops,
Widely used in 5V electronic devices such as car dash cams, navigators, and electronic dogs

Specifications:
Part Name: DC-DC Converters
Color: Black
Material: Plastic
Model: WG-1224S0503TC
Input rated voltage: 12V/24V DC
Input voltage range: 8-32V DC
Conversion efficiency: 91%
Output voltage: 5V DC
Output current: ЗА
Output power: 15W
Voltage regulation: <1%
Load regulation: 2< %
Ripple & noise: 30mVp-p
No-load loss: 0.15W
Operating temperature: -35°C ~ +80°C
Waterproof grade: IP68
Size: 63*27*14mm
Weight: 45g
Input wiring type: Wire gauge 20AWG (red positive, black negative)
Output wiring type: USB C

Package Contents:
2*DC-DC Converters


Note:
1. The real color of the item may be slightly different from the pictures shown on website caused by many factors such as brightness of your monitor and light brightness.
2. Please allow slight manual measurement deviation for the data.
