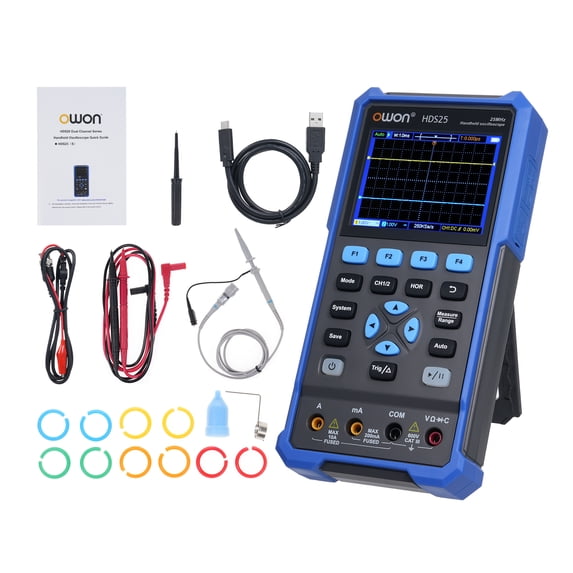

2in1 Oscilloscope Multimeter Dual Channel 25MHz Bandwidth Handheld Portable Oscilloscope 10,000 wfms/s 20,000 Counts Support PC Software Connect With 3.5inch LCD Screen Suitable for various professional and DIY applications. Ideal for testing and troubleshooting electronic circuits, identifying voltage spikes or noise issues, and conducting signal analysis. Its automotive diagnostic capabilities allow connection to vehicle sensors and components for detecting potential problems. Perfect for field service, work, laboratory research, and educational purposes, this versatile tool is an essential asset for professionals and hobbyists alike. Comprehensive multimeter functions for a wide of measurements. integrated multimeter offers 20,000 count readouts with digital display, supporting basic measurements such as voltage, current, resistance, capacitance, continuity testing, and diode testing. It supports maximum input voltages of AC 750V/ 1000V and currents of AC 10A/ 10A. multimeter also features auto-ranging and true RMS measurement for accurate readings under various conditions. High-performance oscilloscope with superior specifications. Equipped with a dual-channel oscilloscope featuring a 25MHz bandwidth and real-time sampling rates of 250 MSa/s (single channel) or 125 MSa/s (dual channels), this tool can capture detailed waveforms with high accuracy. waveform refresh rate of to 10,000 wfms/s ensures smooth and responsive visualization, while cursor test and seven automatic measurement functions provide precise data analysis. Additionally, self-calibration feature maintains accuracy over time. Combine oscilloscope and multimeter functionalities in a single, portable unit. HDS25 2-in-1 Oscilloscope Multimeter integrates both oscilloscope and multimeter capabilities into one compact, lightweight device. This dual functionality eliminates need to carry multiple tools, making it highly convenient for on-site work or field service. built-in rechargeable battery ensures extended usage without being tethered to a source. data management and PC connectivity for efficient workflow. device allows users to save oscilloscope settings, reference waveforms, and files internally. Any configuration can be saved and recalled easily. Connecting to a PC via USB enables reading and analyzing stored data in CSV format or as images, facilitating detailed post-processing and documentation. Support for SCPI (Standard Commands for Programmable Instruments) enhances flexibility for secondary development and integration into automated systems.

Partial Performance Parameters of Oscilloscope
Bandwidth: 25MHz
Channel: 2 Channels
Real Time Sampling Rate: 250MSa/s(Single Channel), 125MSa/s(Dual channel)
Sampling Mode: Normal, Peak Sampling
Storage Depth: 4K or 8K
Display: 3.5-inch LCD
Waveform Refresh Rate: 10000 wfrms/s
Input Coupling: , AC, Ground
Input Impedance: 1M ± 2%, Parallel with 16pF ± 10pF
Probe Attenuation Coefficient: 1X, 10X, 100X, 1000X, 10000X
Maximum Input Voltage: 400V (+AC Peak, 1M Input Impedance) (10:1 Probe Attenuation)
Bandwidth Limit: 20MHz
Time Base : 5ns/div~1000s/div, Step by 1~2~5 Base
Vertical Sensitivity: 10mV/div~10V/div
Vertical Resolution: 8-bit
Low Frequency Response: ≤ 10Hz (-3db) at BNC
Trigger Type: Edge Trigger
Trigger Mode: Automatic, Normal, Single Shot
Trigger Level: ± 4 Divisions from Center of Display Screen
Automatic Measurement: Frequency, Cycle, Amplitude, Maximum Value, Minimum Value, Average Value, Peak to Peak Value
Cursor Measurement: Voltage Difference Between Cursor ( V), Time Difference Between Cursor ( T)
Communication Interface: USB TYPE-C
Supply: 2 * 3.7V Batteries

Specifications:
Main Material: ABS
Item: 2in1 OscilloscopeMultimeter
Color: Black, Blue


Part of Performance Parameters of Multimeter are Standard
Digital
