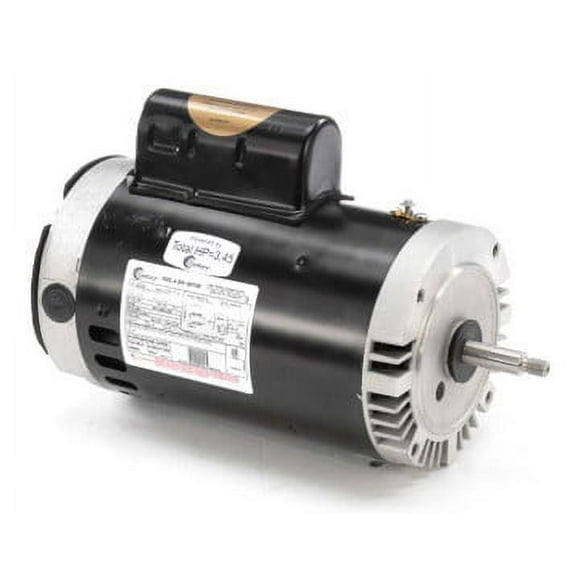

3 hp 2-Speed 56J Frame 230V; 2 Speed Swimming Pool Motor Century # B966

• 3 HP 3450/1725 RPM, 2-Speed 56J, 13.8/4.0 amps, 230V 60hz.
• Automatic Overload Protection - Service Factor 1.15
• Non-Reversible - CCW Rotation facing the shaft
• C-Face Mount, Round Body-no base
• 56-J Frame; 5/8" diameter threaded stainless steel shaft

With integrated timer. Century's premium efficiency motor, the first motor with an integrated timer, addresses the challenge many pool owners have when selecting the right time to run their pump at the energy-saving low speed to save the most in energy cost. No need for an expensive remote timer. Simple to operate, push button with display. 2-Speed 56J frame pool pump motor. Can also be used on any pump requiring a 56J frame motor. This is a full rated motor with a High Service factor. Amps are stated based on the full service factor. Stainless steel shafts, sealed ball bearings, switchless. Motor does not come with 2 speed switch. Motor has 4 threaded bolt holes on face for mounting the pump to the motor. Bolt holes are 5 7/8" on center measured across the shaft. Wiring diagram on motor name plate. 1 Year Manufacture. Wiring Diagram: L2 = Line; L1 = Line; A = Not Used. US Electric Equivalent EB966
